708A Multi-Expansion Slot Fanless Industrial PC

708A Multi-Expansion Slot Fanless Industrial PC

◆ 6th Gen Core Fanless Industrial PC For Machine Vision;

◆ Onboard Intel Skylake-U Intel Core i3 i5 i7;

◆ Intel HD Graphics 510 / 520;

◆ Support 32 road Opto-couplers isolation GPIO Signal;

◆ Support 5 x LAN（Support 4 x 802.3af standard POE LAN）;

◆Support DC 9-36V wide voltage Input.

The IBOX-708A is a Multi-Expansion Slot Fanless Industrial PC, including 1x PCIe X16 slot, 1x PCIe X4 slot, and 2x PCI slots. This allows users to add additional components such as specialized network cards, storage devices, or custom I/O interfaces to meet specific application requirements, the IBOX-708A Industrial PC offering flexible serial communication option, desing to six serial ports ,COM1 and2 optional RS232,422,485 mode,s. These ports are ideal for connecting to legacy equipment, PLCs, sensors, or other devices requiring serial communication, ensuring the system can integrate seamlessly with existing infrastructure.

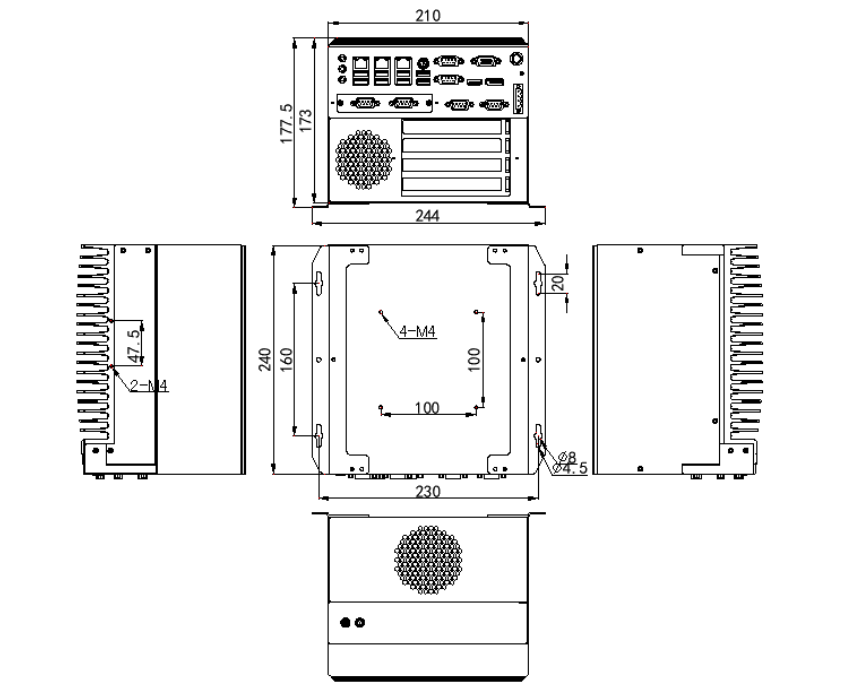

IBOX-708A Drawing

Specification

Model	IBOX-708A
Color	Metal gray (Color can be customized)
Material	High quality aluminum alloy+ sheet metal structure
Processor	Intel Core i3 6100T (Dual core four threads，3.2GHz)
	Intel Core i5 6500T (Quad core four threads，2.5GHz，Max turbo 3.1GHz)
	Intel Core i7 6700T (Quad core eight threads，2.8GHz，Max turbo 3.6GHz)
RAM	Support 2*DDR4 1866/2133 SODIMM RAM Slot，Max. Support 32GB
BIOS	AMI EFI BIOS
Display Chip	Integrated Intel UHD Graphics 530
Display Port	1VGA，1HDMI，1*DP（Support synchronous and asynchronous three display）
Display Port
I/O Port	8USB3.0，3Intel 1000M LAN，1Power Switch，1MIC，2*Speaker，
	6COM（COM1、COM2 RS232/422/485 Optional），1DC power supply phoenix connector
	1VGA，1HDMI，1DP, 1Keyboard or Mouse port
Expansion Port	Support 1*MINI PCIE slot（WIFI/3G/4G Optional），Embedded SIM slot
	Support 1*MINI PCIE slot（MSATA/3G/4G Optional），Embedded SIM slot
	Optional Ports: 16Bit GPIO、4*USB2.0（Standard version doesn’t include these ports）
Expansion Slot	1PCIE X16 slot + 1PCIE X4 slot + 2*PCI slot，Max length of expansion card: 210 mm
Network	2Intel i211-AT，1Intel i219-LM 1000M LAN（Support Vpro Technology）
Storage	Support 1MSATA slot，22.5” SATA HDD（Support RAID0/1）
Input Voltage	DC 9～36V wide voltage Input, Support positive pole and negative electrode connect reversely protection
Other Function	Auto power on when there is electricity、Timing boot、Wake on LAN、PXE boot、Watchdog（0～255 level）(Standard version doesn’t set these function)
Other Function
Work Temp	0℃ ～ +50℃（Commercial HDD），-20℃ ～ +60℃（Industrial SSD），Surface air flow
Work Humidity	5% ～ 95% non-condensing
Certificates	CE,CCC,FCC Class A,ROHS

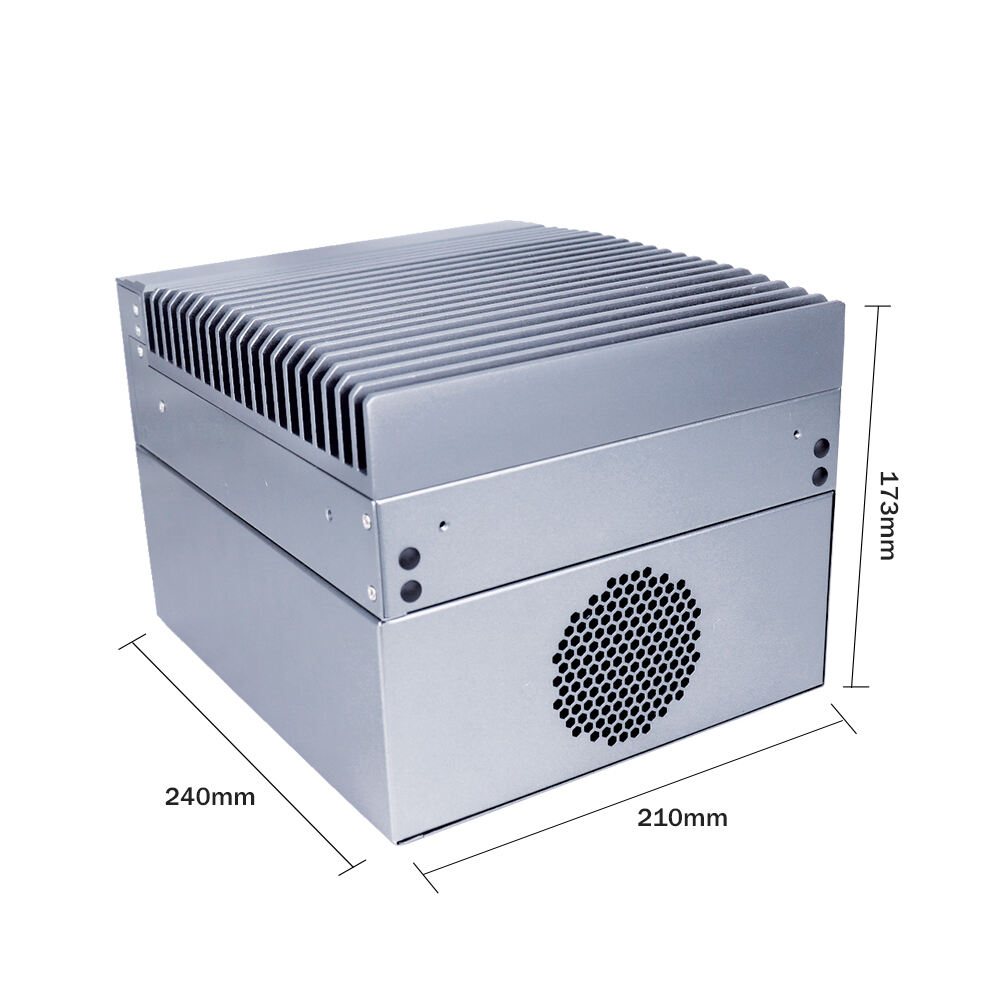

Size	210 * 240 * 173mm【Not include bracket】
Weight	5.2kg【Not include bracket】
Application	Industrial Automation, Medical, Logistics Transportation, Warehouse, Machine Vision, etc.
