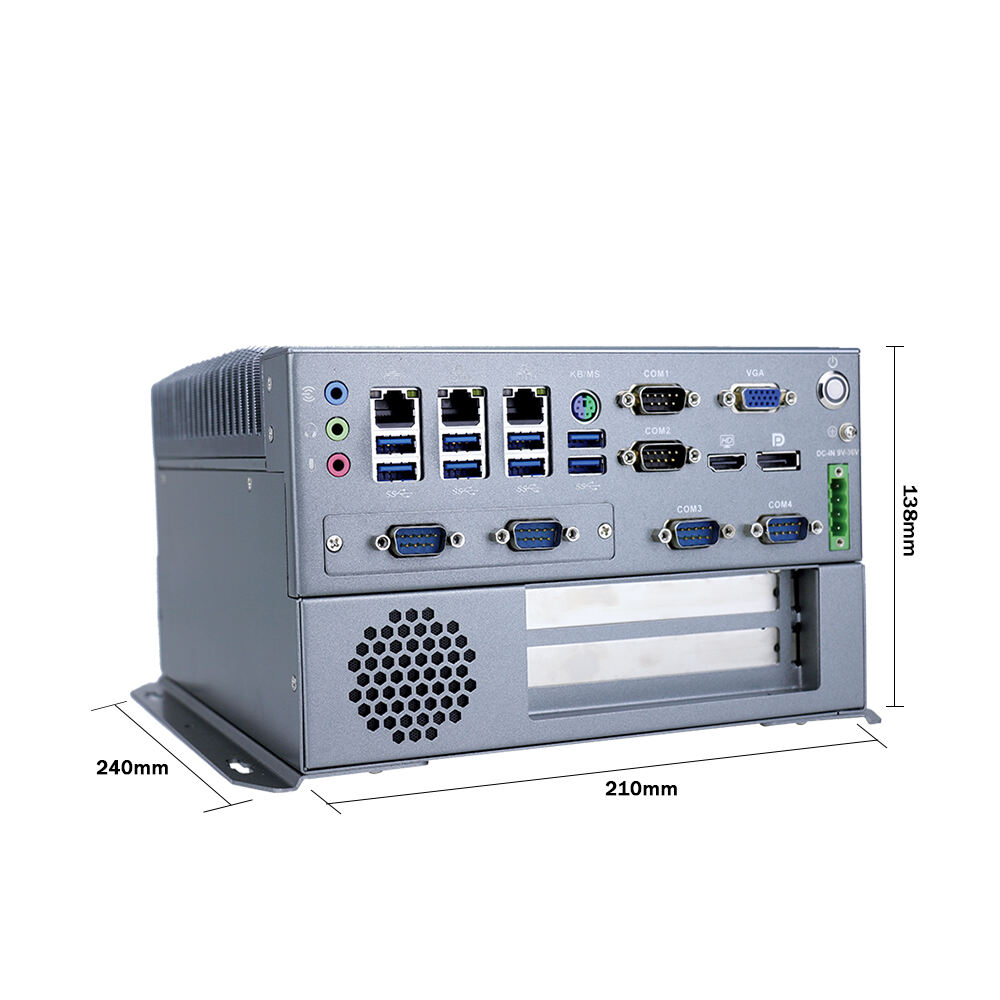

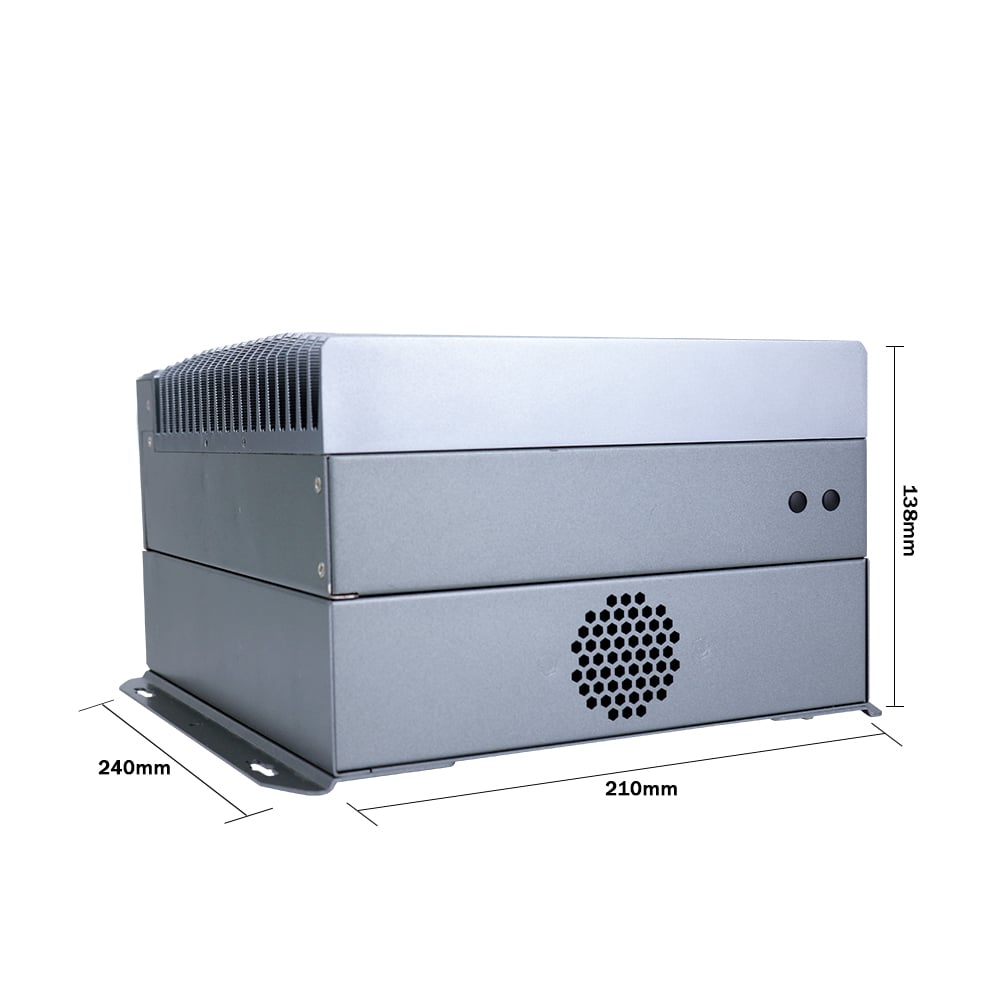

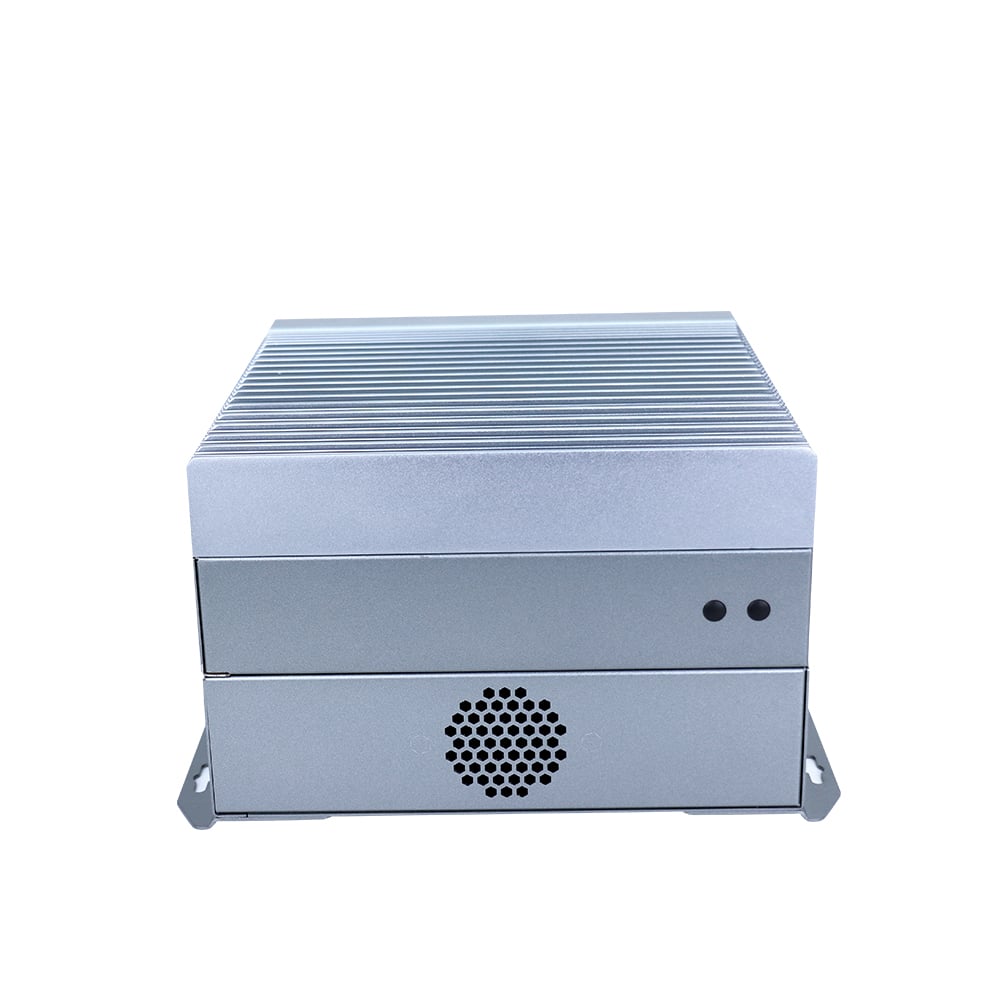

708B Industrial Rugged PC With PCIE PCI Slot

708B Industrial Rugged PC With PCIE PCI Slot

◆ Support 1xPCIE X16 + 1xPCI expansion Slot;

◆ Onboard Intel Q170 chipset;

◆ 2 x DDR4 Ram Slot, Max 32GB;

◆ 1 x MSATA Slot, 2x 2.5” SATA HDD;

◆ 6 x COM（COM1,COM2 RS232/422/485）;

◆DC 9 - 36V wide voltage Input.

IBOX-708B is equipped with aluminum alloy+ sheet metal structures' rugged and reliable chassis design,stable running 7/24h harsh industrial environments.It supports a wide input voltage range of DC 9V to 36V, making it suitable for use in locations with unstable or fluctuating power sources. Wotking in the -20℃ - +60℃ temperurer continuous operation without performance degradation or failure.ideal for automation, control, monitoring, or networking solution.

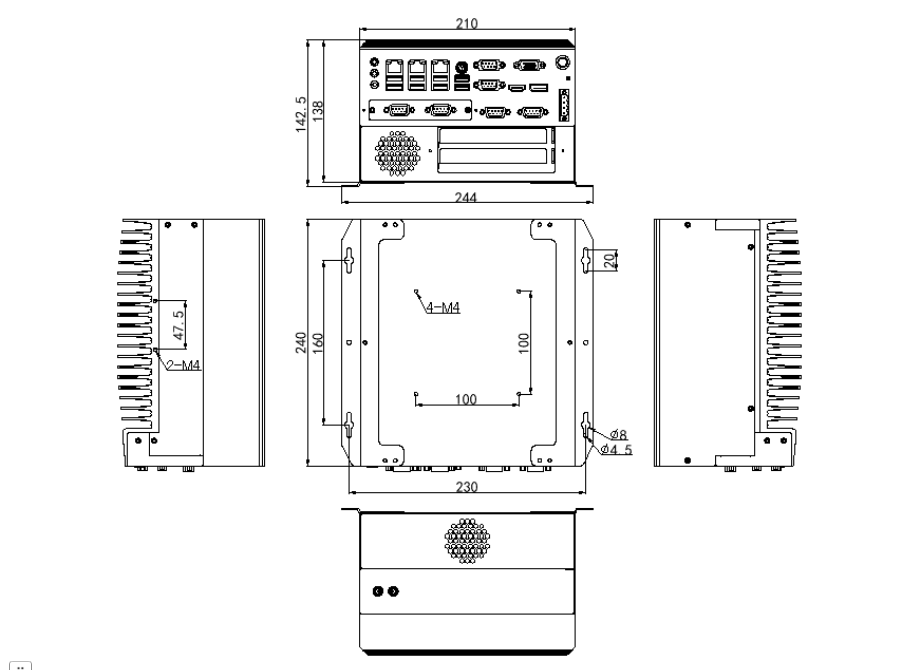

IBOX-708B Drawing

Specification

Model	IBOX-708B
Color	Titanium gray (Color can be customized)
Material	High quality aluminum alloy+ sheet metal structure
Processor	Intel Core i3 6100T (Dual core four threads，3.2GHz)
	Intel Core i5 6500T (Quad core four threads，2.5GHz，Max turbo 3.1GHz)
	Intel Core i7 6700T (Quad core eight threads，2.8GHz，Max turbo 3.6GHz)
RAM	Support 2*DDR4 1866/2133 SODIMM RAM Slot，Max. Support 32GB
BIOS	AMI EFI BIOS
Display Chip	Integrated Intel HD Graphics 530
Display Port	1VGA，1HDMI，1*DP（Support synchronous and asynchronous three display）
Display Port
I/O	8USB3.0，3Intel 1000M LAN，1Power Switch，1MIC，2*Speaker，
	6COM（COM1、COM2 RS232/422/485 Optional），1DC power supply phoenix connector
	1VGA，1HDMI，1DP, 1Keyboard or Mouse port
Expansion Port	Support 1*MINI PCIE slot（WIFI/3G/4G Optional），Embedded SIM slot
	Support 1*MINI PCIE slot（MSATA/3G/4G Optional），Embedded SIM slot
	Optional Ports: 16Bit GPIO、4*USB2.0 （Standard version doesn’t include these ports）
Expansion Slot	1PCIE X16 slot + 1PCI slot，Max length of expansion card: 210 mm
Network	2Intel i211-AT，1Intel i219-LM 1000M LAN（Support Vpro Technology）
Storage	Support 1MSATA slot，22.5” SATA HDD（Support RAID0/1）
Input Voltage	DC 9～36V wide voltage Input, Support positive pole and negative electrode connect reversely protection
Other Function	Auto power on when there is electricity、Timing boot、Wake on LAN、PXE boot、Watchdog（0～255 level）(Standard version doesn’t set these function)
Other Function
Work Temp	0℃ ～ +50℃（Commercial HDD），-20℃ ～ +60℃（Industrial SSD），Surface air flow
Work Humidity	5% ～ 95% non-condensing
Certificates	CE,CCC,FCC Class A,ROHS
Size	210 * 240 * 138mm【Not include bracket】
Weight	4.7kg【Not include bracket】
Application	Industrial Automation, Medical, Logistics Transportation, Warehouse, Machine Vision, etc.
