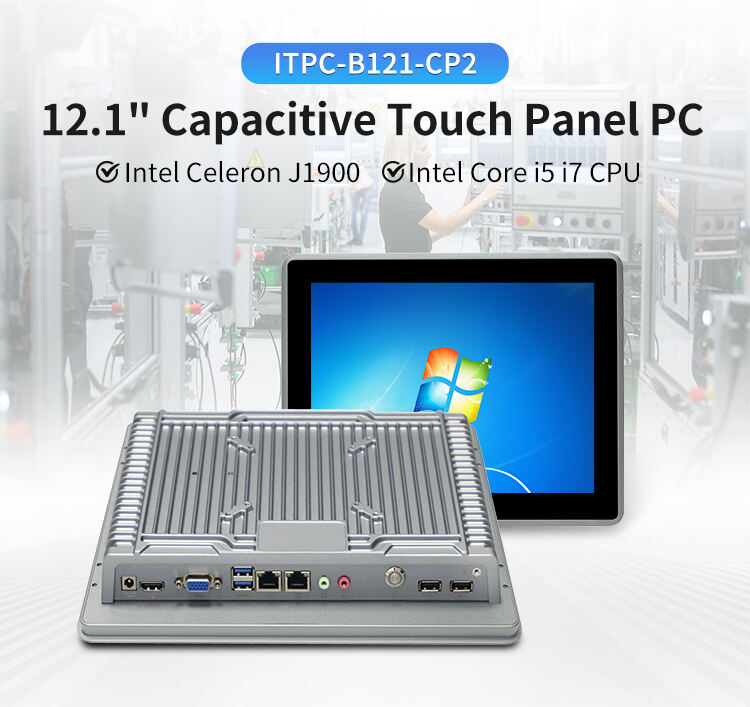

B121-CP 12.1inch Embedded Panel PC

◆12.1inch TFT-LCD Embedded Panel PC ;

◆Fully HD LCD screen, Multi-point capacitive touch screen ;

◆ Support 1 x MSATA slot, 1 x MINI PCIE WiFi/4G slot;

◆ Full flat front panel, IP65 rated protection, Ratio：4:3;

◆ Resolution：1024 x 768; Brightness：500 cd/m2;

◆Support embedded, desktop, wall mounted, VESA.

The 12.1-inch TFT-LCD Embedded Panel PC is a compact and durable solution designed for versatile industrial and commercial applications. It features a fully HD LCD screen with a 4:3 aspect ratio, a resolution of 1024x768, and a high brightness of 500 cd/m², ensuring excellent visibility in various lighting conditions. The multi-point capacitive touch screen and IP65-rated full flat front panel provide robust protection against dust and water, making it suitable for harsh environments. With 1 mSATA slot and 1 mini PCIe slot for WiFi or 4G connectivity, it offers flexible communication and storage options. Its support for embedded, desktop, wall-mounted, and VESA mounting allows for easy integration into different setups. This panel PC is ideal for use in applications such as portable medical devices, compact control systems, and interactive kiosks, where space efficiency and durability are critical.

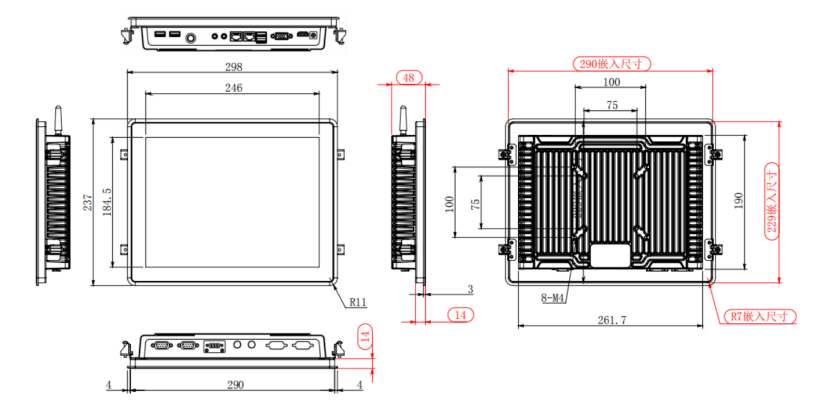

ITPC-B121-CP2 Drawing

Product Parameter

Model	ITPC-B121-CP2
Color	Grey
Material	Aluminum alloy + steel plate
Processor	Onboard Intel Celeron J1900
Processor	Onboard 4/5^th Gen Intel Core i5/i7（The specific model is subject to shipment）
Chip	Intel CPU integrated chip
Memory	J1900：support 1*DDR3L 1333/1600 memory slot，Max. 8GB
Memory	4/5^th Gen i5/i7：support 2*DDR3L 1333/1600 memory slot，Max. 16GB
BIOS	AMI UEFI BIOS
Display Chip	Integrated Intel Graphics core display card
Display Port	1VGA，1HDMI，1*LVDS；（Supports synchronous and asynchronous dual display）
Display Port

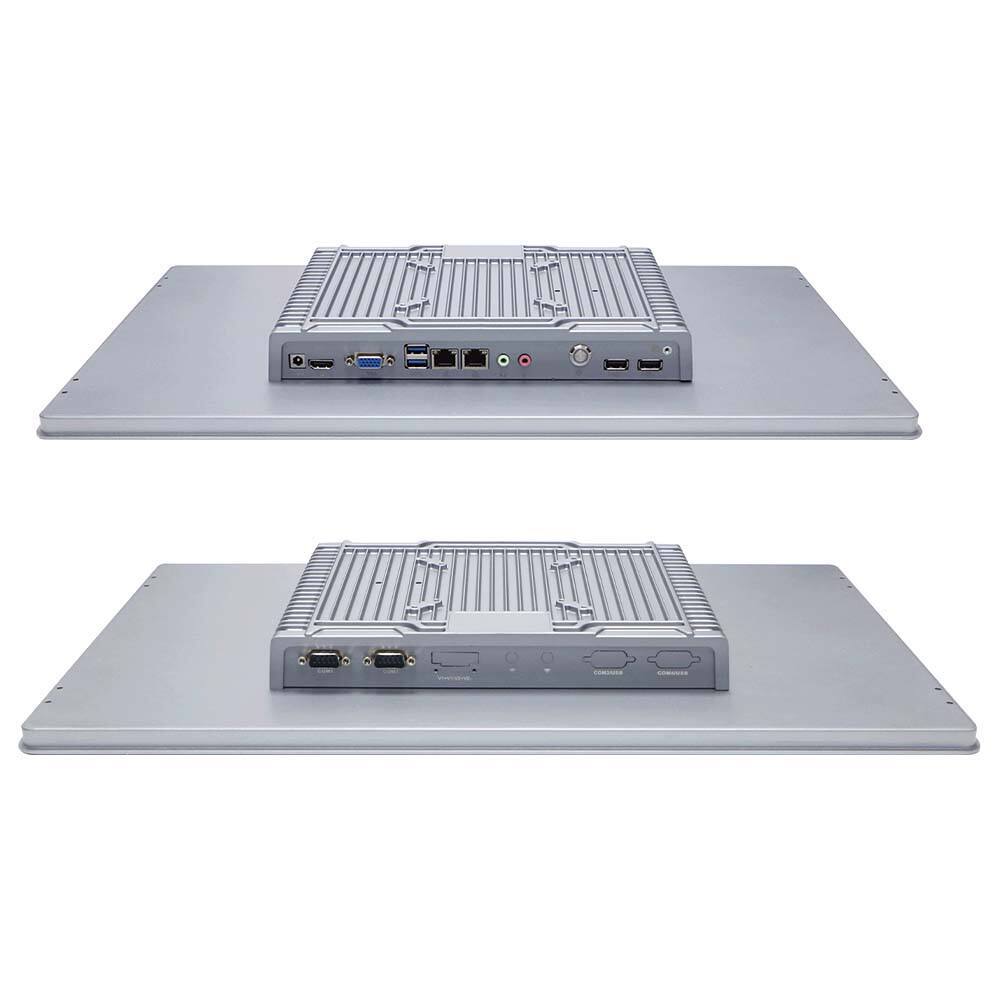

I/O	1Power switch，1DC，1HDMI，1VGA，2USB 3.0，2USB 2.0，
I/O	21000M Lan ports，1Mic，1Line Out，2COM（One of them is optional RS232/485）
Expansion slot	Support 1*MINI PCIE slot，（Optional support for WIFI/4G module）
Storage	Support 1*MSATA slot（It depends on the selected motherboard）
LCD parameters	Screen size：12.1inch TFT-LCD
	Screen scale：4:3； resolution：1024 * 768；
	Screen brightness：500 cd/m²；
Touch screen	Multi-point capacitive touch screen, life can reach more than 50 million times; Fit with LCD screen;
Speaker	28Ω2W Speaker{Custom wide pressure（DC24V in/DC9~36V） Only have 1speaker}
Input Voltage	DC 12V(9-36V wide voltage can be customized)
Working environment	Temperature :0℃ ~ +50℃, surface air flow; Humidity: 5% ~ 95% non-condensing state
Dimension	298 * 237 * 48 mm
Net Weight	2.4kg
Application	Industrial automation, medical, logistics, transportation, warehousing, e-education and other fields
Warranty	1 year
