B150-CP 15 inch Touch Screen Industrial PC

B150-CP 15 inch Touch Screen Industrial PC

◆15inch TFT-LCD Industrial Panel PC;

◆ Fully HD LCD screen, Multi-point capacitive touch screen;

◆ Support 1 x MSATA slot, 1 x MINI PCIE WiFi/4G slot;

◆ Full flat front panel, IP65 rated protection,Ratio：4:3;

◆ Resolution：1024 x 768; Brightness：500 cd/m2;

◆Support embedded, desktop, wall mounted, VESA.

The 15" Industrial Panel PC powered by features a fully HD LCD screen with a 4:3 aspect ratio, a resolution of 1024x768, and a high brightness of 500 cd/m², ensuring clear visibility even in bright environments. The multi-point capacitive touch screen and IP65-rated full flat front panel provide durability and resistance to dust and water. It includes 1 mSATA slot and 1 mini PCIe slot for WiFi or 4G connectivity, offering flexibility for communication and storage needs. With support for embedded, desktop, wall-mounted, and VESA mounting, it adapts to various installation requirements. Additionally, this product is certified with CE, ROHS, and FCC, ensuring compliance with international safety and environmental standards.

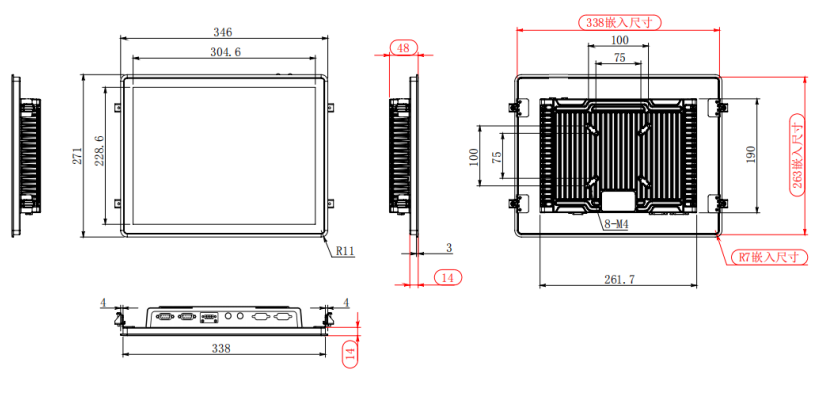

ITPC-B150-CP2 Drawing

Specification

Model	ITPC-B150-CP2
Color	Gray
Material	Aluminum Alloy + Steel Plate
Processor	Intel Celeron J1900/J6412
Processor	4/5th gen Intel Core i5/i7(the specific model is subject to shipment)
Chipset	Intel CPU Integrated Chip
RAM	J1900: 1 DDR3L 1333/1600 Ram slot, Max. 8GB
	J6412：support 1 DDR4 3200 Ram slot, Max. 16GB
	4/5th gen i5/i7：support 2 DDR3L 1333/160 Ram slot, Max. 16GB
BIOS	AMI UEFI BIOS
Display Chip	Intel Graphics
Display Port	1VGA，1HDMI，1*LVDS(Support Synchronous/Asynchronous Dual Display)
Display Port
I/O	1 power switch, 1 DC , 1 HDMI, 1 VGA, 2 USB 3.0, 2 USB 2.0,
I/O	2 Gigabit Ethernet ports, 1 Mic, 1 Line Out, 2 COM (1 optional)
LCD	Size: 15inch TFT-LCD；
	Ratio: 4：3； Resolution: 1024 * 768；
	Brightness: 350 cd/m²；
Expansion Slot	Support 1 MINI PCIE slot (optional WIFI/4G）
Storage	1*MSATA Slot(According To The Selected Motherboard)
Input Voltage	DC 12V
Touch Screen	Multi point capacitive touch screen, with a lifespan of over 50 million times; Adopting and manufacturing techniques to adhere to the LCD screen;
Touch Screen
Work Temp	DC 12V
Speaker	2*8Ω2W speaker
Dimension	34627148 mm
Net Weight	2.9kg
Application	Industrial Automation, Medical, Logistics &Transportation, Warehousing,E-Education etc,
Warranty Policy	1 Year Warranty (If Otherwise Agreed In The Contract, The Contract Shall Prevail)
