B156-CP 15.6inch Industrial Touch PC

◆ Multi point capacitive touch screen;

◆Optional Intel Celeron Intel Core Processor ;

◆ Spport 1 x MSATA slot, 1 x MINI PCIE WiFi/4G slot;

◆ Full flat front panel IP65 rated protection;

◆Optional 4 COM ports One optional RS232/485;

◆Support Win7 Win8 Win10 Linux OS./p>

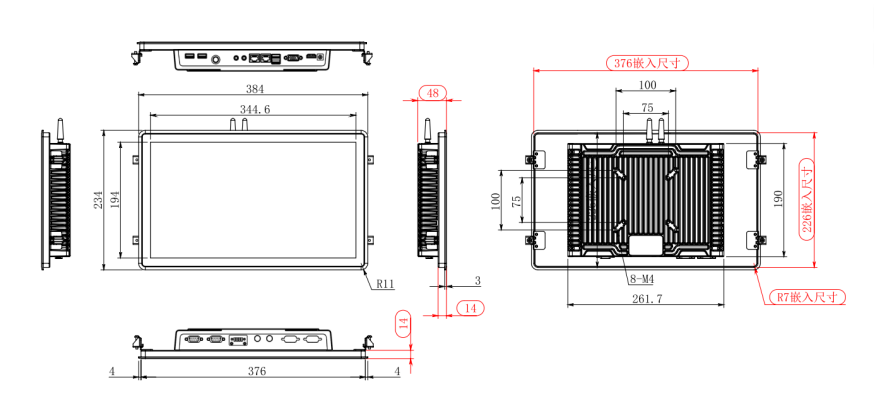

ITPC-B156-CP2 Drawing

Specification

Model	ITPC-B156-CP2
Color	Gray
Material	Aluminum Alloy + Steel Plate
Processor	Intel Celeron J1900/J6412
Processor	4/5th gen Intel Core i5/i7(the specific model is subject to shipment)
Chipset	Intel CPU Integrated Chip
RAM	J1900: 1 DDR3L 1333/1600 Ram slot, Max. 8GB
	J6412：support 1 DDR4 3200 Ram slot, Max. 16GB
	4/5th gen i5/i7：support 2 DDR3L 1333/160 Ram slot, Max. 16GB
BIOS	AMI UEFI BIOS
Display Chip	Intel Graphics
Display Port	1 VGA, 1 HDMI, 1 LVDS ;(Support Synchronous/Asynchronous Dual Display)
Storage	Support 1 MSATA (According To The Selected Motherboard)
Expansion Slot	Support 1 MINI PCIE/M.2 slot (optional WIFI/4G , J6412 motherboard doesn't support 4G)模块）
I/O	1 power switch, 1 DC , 1 HDMI, 1 VGA, 2 USB 3.0, 2 USB 2.0,
I/O	2 Gigabit Ethernet ports, 1 Mic, 1 Line Out, 2 COM (1 optional)
LCD	Size: 15.6 Inch TFT-LCD;
	Ratio: 16:9; Resolution: 1920 * 1080;
	Brightness: 250 Cd㎡;
Touch Screen	Multi point capacitive touch screen, with a lifespan of over 50 million times;
Speaker	Two 8-ohm 2-watt speaker
Input Voltage	DC 12V
Work Temp	Temp: 0℃ ~ +50℃, surface air flow; Humidity: 5% ～ 95% non-condensing
Dimension	384 * 234 *48mm
Net Weight	2.7 kg
Application	Industrial Automation, Medical, Logistics &Transportation, Warehousing,E-Education etc,.
Warranty Policy	1 Year Warranty (If Otherwise Agreed In The Contract, The Contract Shall Prevail)
