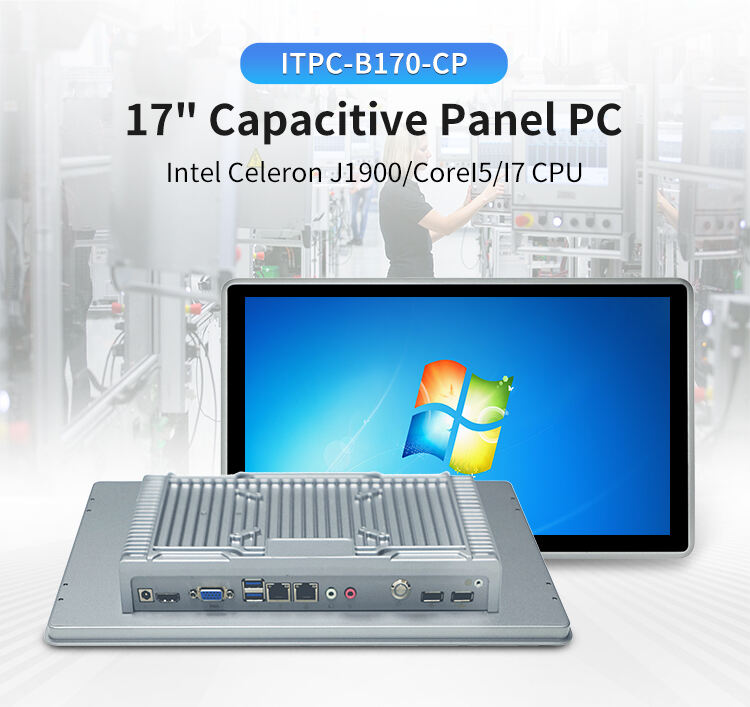

B170-CP 17inch All in One Touch PC

◆ 17 Inch TFT-LCD all in one touch pc;

◆Support for Intel Celeron J1900 / Core I5 / I7 CPU;

◆ Fully fitted HD LCD screen, multi-point capacitive touch screen;

◆ Support 1 MSATA slot; 1 MINI PCIE WiFi / 4G slot;

◆4 COM ports (1 of them optional RS232 / 485);

◆Support embedded, desktop, wall-mounted, and VESA standards;/p>

◆Full plane front panel, IP65 grade protection;

The 17” All-in-One Touch PC is a versatile and compact device designed for flexible deployment in various environments. It features a high-definition LCD screen with a multi-point capacitive touch interface, powered by Intel Celeron J1900, Core i5, or i7 processors for reliable performance. With 1 mSATA slot, 1 mini PCIe slot for WiFi or 4G connectivity, and 4 COM ports (including an optional RS232/485), it offers excellent connectivity options. Its IP65-rated front panel ensures protection against dust and water, while its support for embedded, desktop, wall-mounted, and VESA mounting.

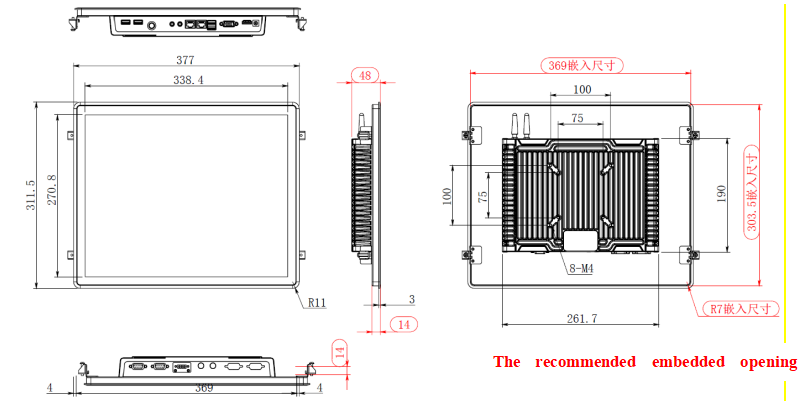

ITPC-B170-CP2 Drawing

Specifications

Model	ITPC-B170-CP2
Color	Gray
Material	High-quality all aluminum,Surface anodic oxidation
Case material	Aluminum alloy + steel plate
Processor	Onboard Intel Celeron J1900 / J6412
Processor	Onboard 4 / 5 gen Intel Core i5 / i7 (specific model is subject to shipment)
chip set	Intel CPU integrated chip
RAM	J1900: Support 1 DDR3L 1333 / 1600 memory slot, the maximum support of 8GB
	J6412:1 DDR4 3200 memory slot, 16GB
	4 / 5 generation i5 / i7: Support 2 DDR3L 1333 / 1600 memory slots, up to 16GB support
BIOS	AMI UEFI BIOS
Display Chip	Integrated Intel Graphics core graphics card
Displays the	1 VGA, 1 HDMI, 1 LVDS ; (support synchronous / asynchronous dual display)
Displays the
I/O port	1 power switch, 1 DC, 1 HDMI, 1 VGA , 2 USB 3.0,2 USB 2.0,
I/O port	2 gigabit network ports, 1 Mic, 1 Line Out, 2 COM (1 optional RS232 / 485)
Extended slot	Support 1 MINI PCIE slot (optional WIFI / 4G module)
LCD screen	Screen size: 17-inch TFT-LCD;
	Screen ratio: 4:3; resolution: 1280 * 1024;

	Screen brightness: 300 cd/m2;

Storage	Support 1 MSATA slot (for the selected motherboard)
Input Voltage	DC 12V (Customizable 9-36V wide pressure)
Touch screen	Multi-point capacitive touch screen, life can reach more than 50 million times; fit with LCD screen;
Touch screen
Speaker	2*8Ω2W (1 for custom wide compression)
Work Environm	Temperature: 0℃ ~ + 50℃, surface air flow; Humidity: 5% ~ 95% non-condensation state
Dimension	377311.548 mm
Weight	3.7kg
Application	Industrial Automation, Medical, Logistics &Transportation, Warehousing,E-Education etc,.
Warranty	1 Year Warranty (If Otherwise Agreed In The Contract, The Contract Shall Prevail)
