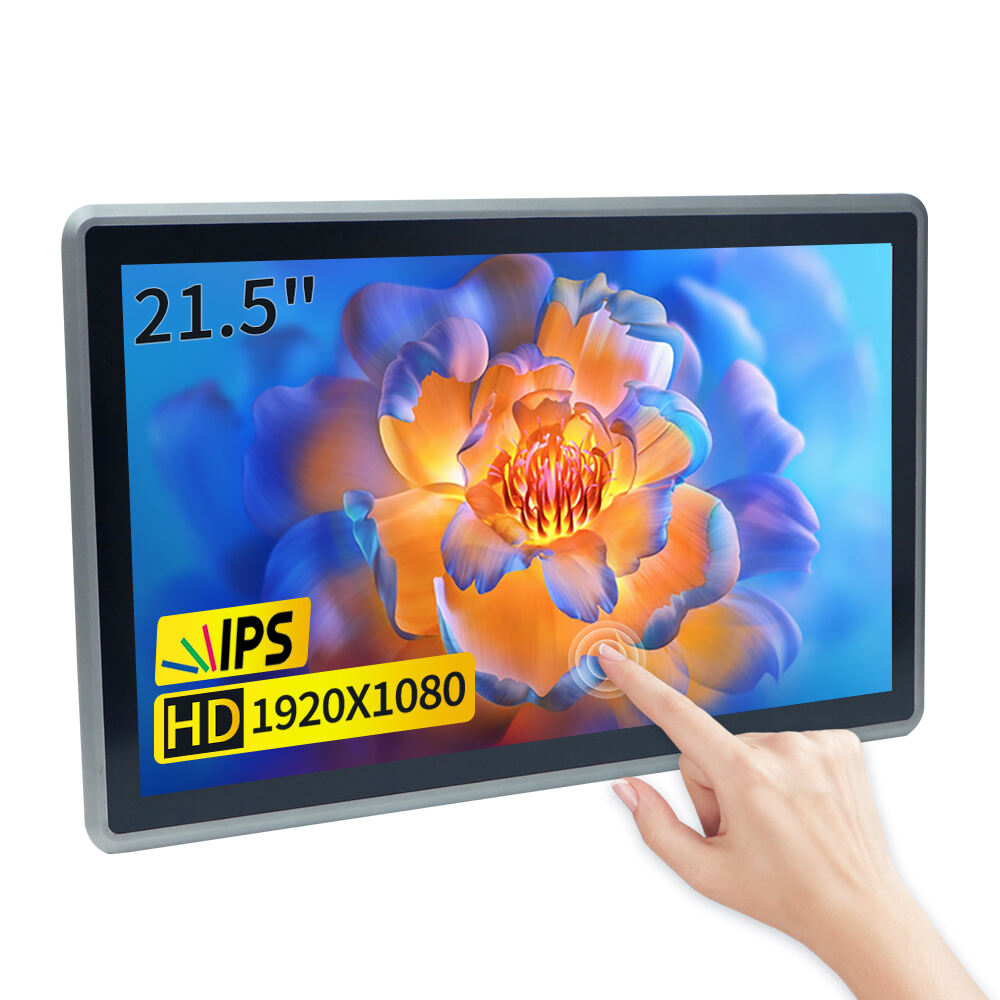

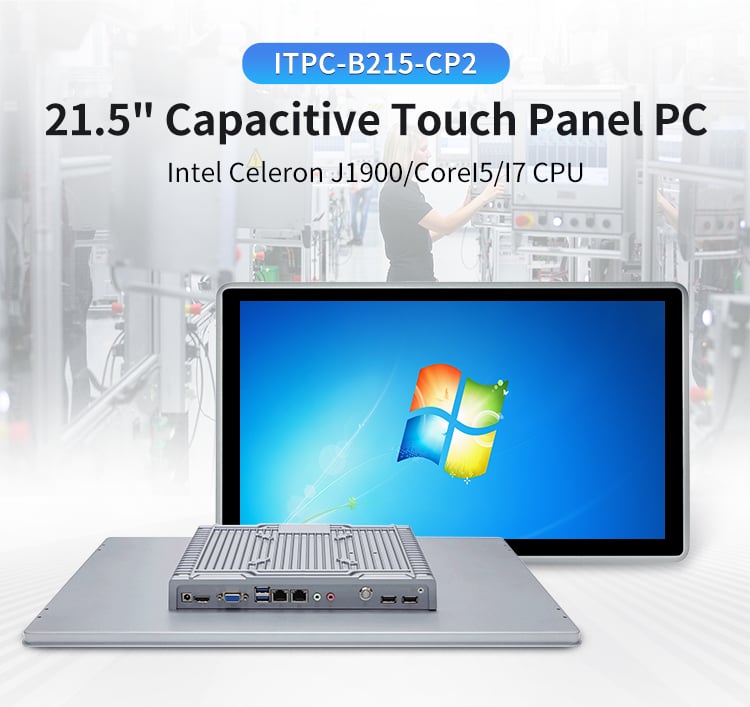

B215-CP 21.5inch IP65 Panel PC

◆ 21.5 Inch TFT-LCD IP65 Panel PC ;

◆ Support for Intel Celeron J1900 / Core I5 / I7 CPU;

◆Fully fitted HD LCD screen, multi-point capacitive touch screen ;

◆Support 1 MSATA slot; 1 MINI PCIE WiFi / 4G slot ;

◆4 COM ports (1 of them optional RS232 / 485) ;

◆DC 12V (Optional 9-36V) Input Voltage ;

◆ Full plane front panel, IP65 grade protection.

The 21.5” IP65 Panel PC designed for durability and versatility. It features a high-definition TFT-LCD screen with a multi-point capacitive touch interface, making it easy to use in various environments. The device supports multiple Intel processors, including Celeron J1900, Core i5, and Core i7, ensuring robust performance for different tasks. It includes 1 mSATA slot and 1 mini PCIe slot for WiFi or 4G connectivity, along with 4 COM ports (one of which can be configured as RS232/485). The panel PC operates on a 12V DC power supply, with an optional 9-36V range for flexibility. Its fully flat front panel and IP65 rating make it resistant to dust and water, ideal for industrial, retail, or outdoor applications where reliability and durability are essential.

ITPC-B215-CP2

Specification

Model	ITPC-B215-CP2
Color	Gray+Silver
Material	Aluminum alloy + Steel Plate
Processor	Intel Celeron J1900
Processor	4th/5th gen Intel Core i5/i7 (the specific model is subject to shipment)
Chipset	Intel CPU integrated chip
RAM	J1900: 1 DDR3L 1333/1600 Ram slot, Max. 8GB
RAM	4th/5th Gen i5/i7: 2 DDR3L 1333/1600 Ram slot, Max. 16GB
BIOS	AMI UEFI BIOS
Display Chip	Intel Graphics
Display Port	1 VGA, 1 HDMI, 1 LVDS ; (Support Synchronous/Asynchronous Dual Display)
Display Port
Expansion Slot	Support 1 MINI PCIE slot, (support WIFI/4G )

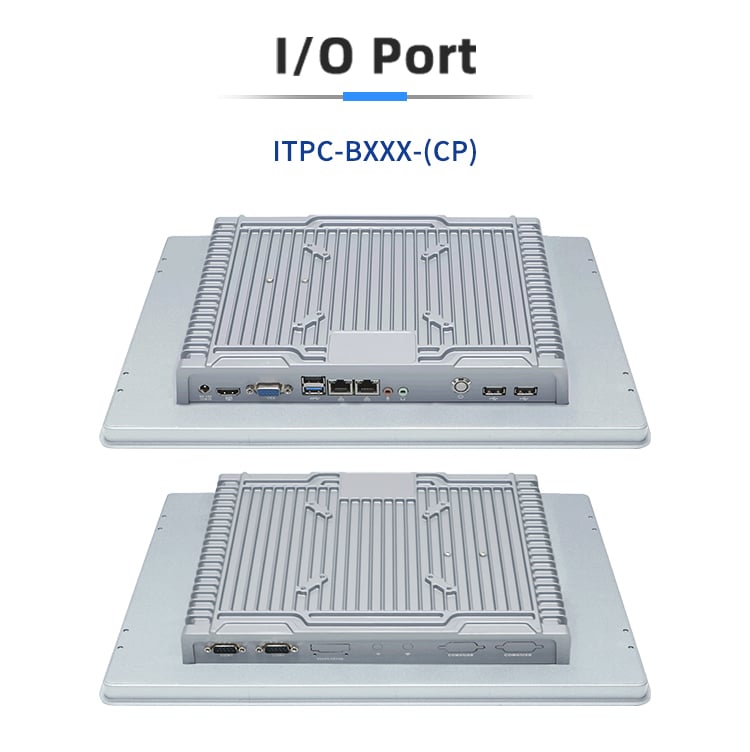

I/O	1 Power Switch, 1 DC , 1 HDMI, 1 VGA, 2 USB 3.0, 2 USB 2.0,
I/O	2 Gigabit Ethernet ports, 1 Mic, 1 Line Out, 2 COM (COM1,2 RS232/485)
LCD	Size: 21.5 Inch TFT-LCD;
	Ratio: 16:9; Resolution: 1920 * 1080;

	Brightness: 250 cd/㎡;

Storage	Support 1 MSATA (According To The Selected Motherboard)
Touch Screen	Multi-Point Capacitive Touch Screen, Life Can Reach More Than 50 Million Times;
Speaker	Two 8-ohm 2-watt speaker
Input Voltage	DC 12V (Optional 9-36V)
Work Temp	0℃ ～ +50℃，Surface air flow
Work Humidity	5% ～ 95% non-condensing
Dimension	4.1kg
Net Weight	Industrial Automation, Medical, Logistics &Transportation, Warehousing,E-Education etc,.
Application	1 Year Warranty (If Otherwise Agreed In The Contract, The Contract Shall Prevail
