◆ Intel 4th Gen Core Processor Industrial Embedded PC ;
◆ Intel Core i5 4300U dual core processor;
◆ Max. Support DDR3L 8G RAM;
◆ Support 1 x MSATA Slot，1x 2.5” HDD;
◆ Support WIFI/3G/4G（Choose one from three);
◆ Support 6*COM（COM3 RS232/422/485 Optional);
◆ Auto power on, Timing boot, Wake on LAN, PXE, Watchdog.
The IBOX-205 Plus Industrial Embedded PC with Intel 4th Generation Core i5 4300U processor dual core quad threads，1.9Ghz，Max. Turbo 2.9Ghz, Integrated Intel HD Graphics 4400, Support synchronous and asynchronous dual display, Max. Support DDR3L 8G RAM, 1*MSATA Slot，1*2.5” HDD（2*2.5” HDD Optional）designed to railway, In-vehicle, Industry 4.0, industrial iot gateway application.

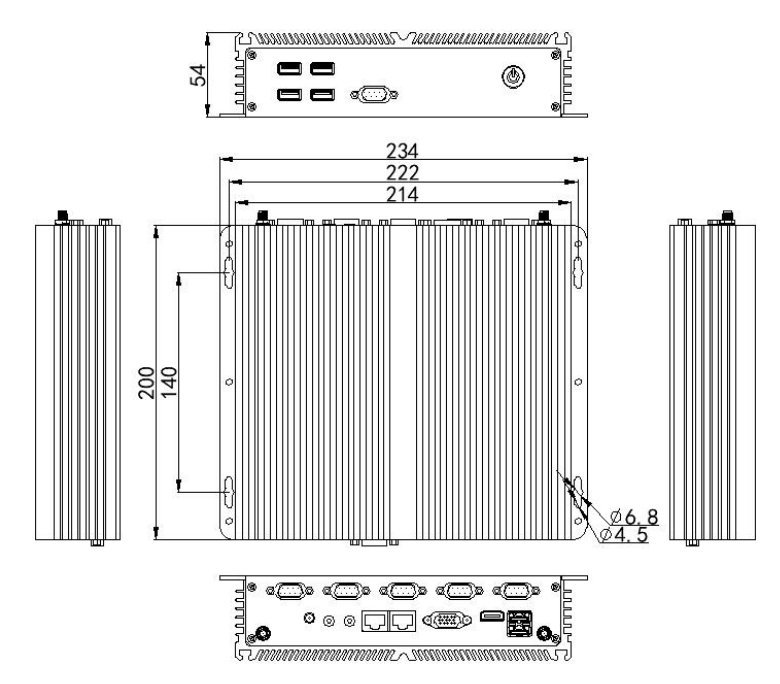

IBOX-205 Plus Drawing
| Model | IBOX-205 Plus |
| Color | Black（Color can be customized） |
| Material | High-quality all aluminum，surface anodic oxidation |
| Processor | Onboard Intel Core i5 4300U（dual core quad threading，1.9Ghz，Max. Turbo 2.9Ghz）； |
| RAM | Support 1*DDR3L 1333/1600MHz SODIMM RAM Slot，Max. Support 8GB |
| BIOS | AMI UEFI BIOS |
| Display Chip | Integrated Intel HD Graphics 4400 |
| Display Port | 1*VGA，1*HDMI（Support synchronous and asynchronous dual display） |

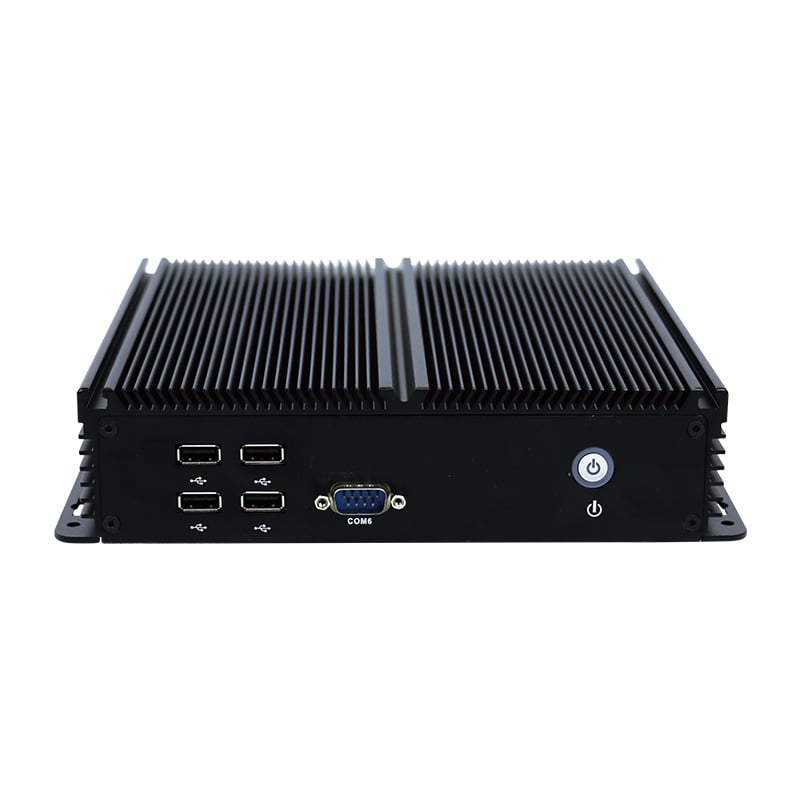

| Front I/O | 4*USB2.0，1*COM，1*Power Switch； |

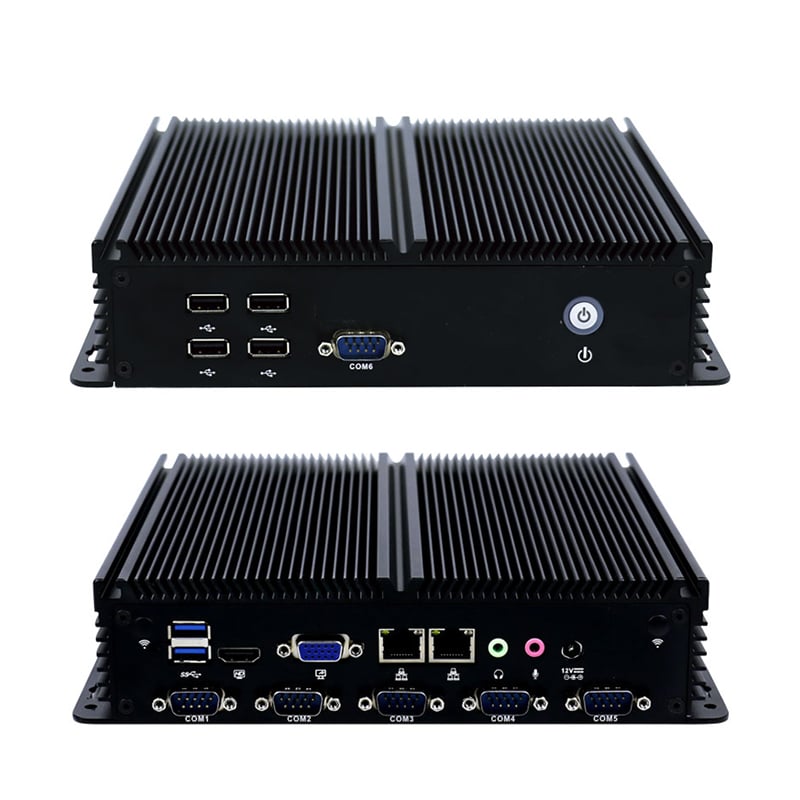

| Rear I/O | 2*USB3.0，5*COM（COM3 RS232/422/485 Optional），2*1000M LAN |
| 1*VGA，1*HDMI，1*DC12V Input，1*Mic，1*Line Out | |
| Expansion Slot | Support 1*MINI PCIE Slot（Support MSATA）； |
| Support 1*MINI PCIE Slot（WIFI/3G/4G Optional），Embedded SIM Slot； | |
| Optional Ports：GPIO、LPT、PS/2 (Standard version doesn’t include these ports) | |
| Network | 2*Intel i211-AT 1000M LAN |
| Storage | Support 1*MSATA Slot，1*2.5” HDD（2*2.5” HDD Optional） |
| Input Voltage | Support DC 12V Input |
| Other Function | Auto power on when there is electricity、Timing boot、Wake on LAN、PXE boot、Watchdog |
| （0～255 level）(Standard version doesn’t set these function) | |
| Work Temp | 0℃ ～ +50℃（Commercial HDD），-20℃ ～ +60℃（Industrial SSD），Surface air flow |
| Work Humidity | 0% ～ 95% non-condensing |
| Certificates | CE、 CCC、 FCC Class A、 ROHS |
| Dimension | 234 * 200 * 54mm |
| Net Weight | 2.0kg |
| Application | Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education etc. |
