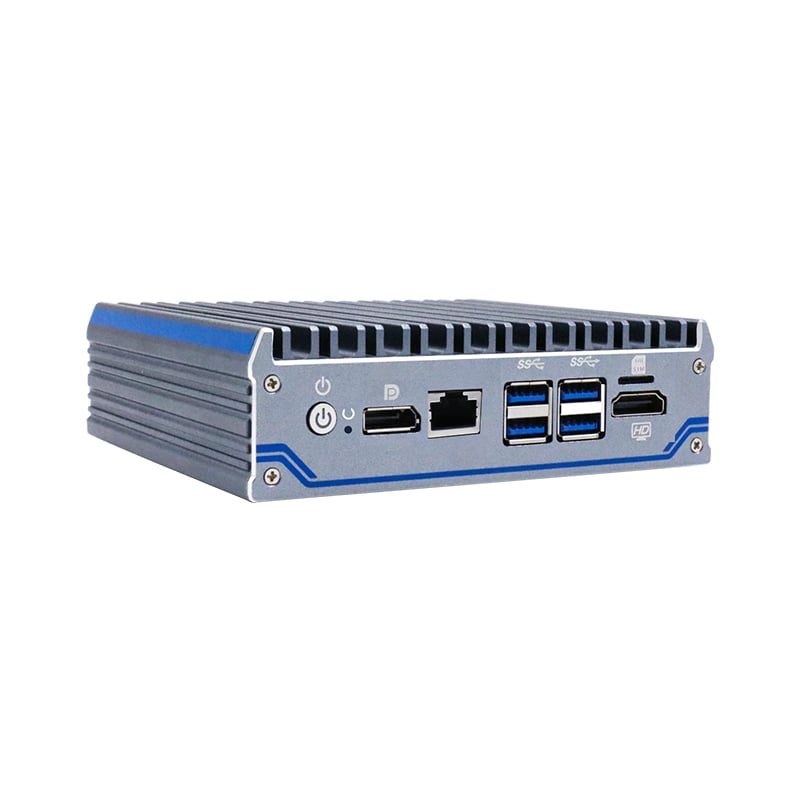

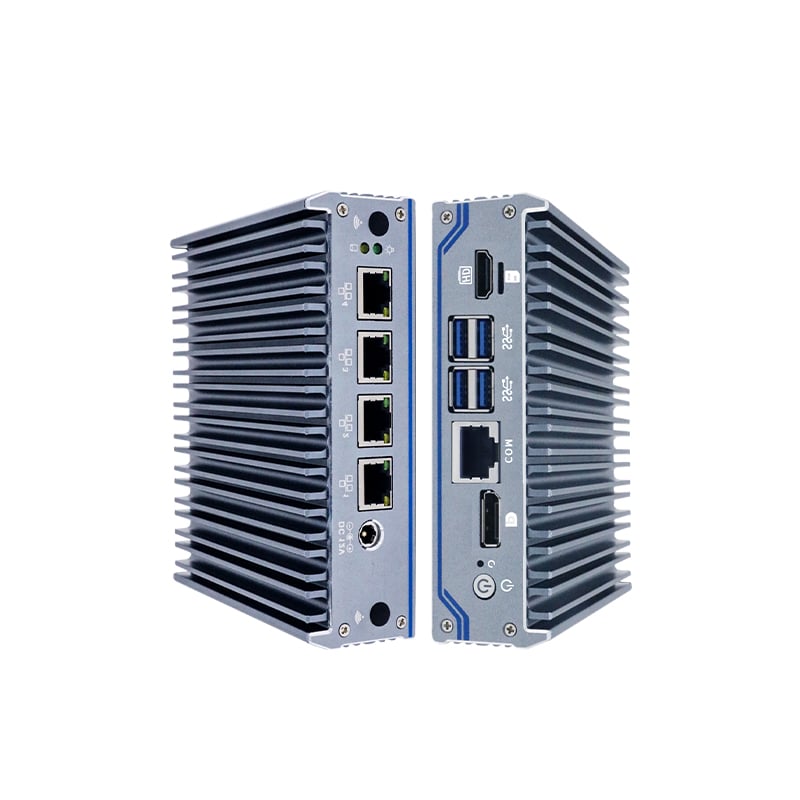

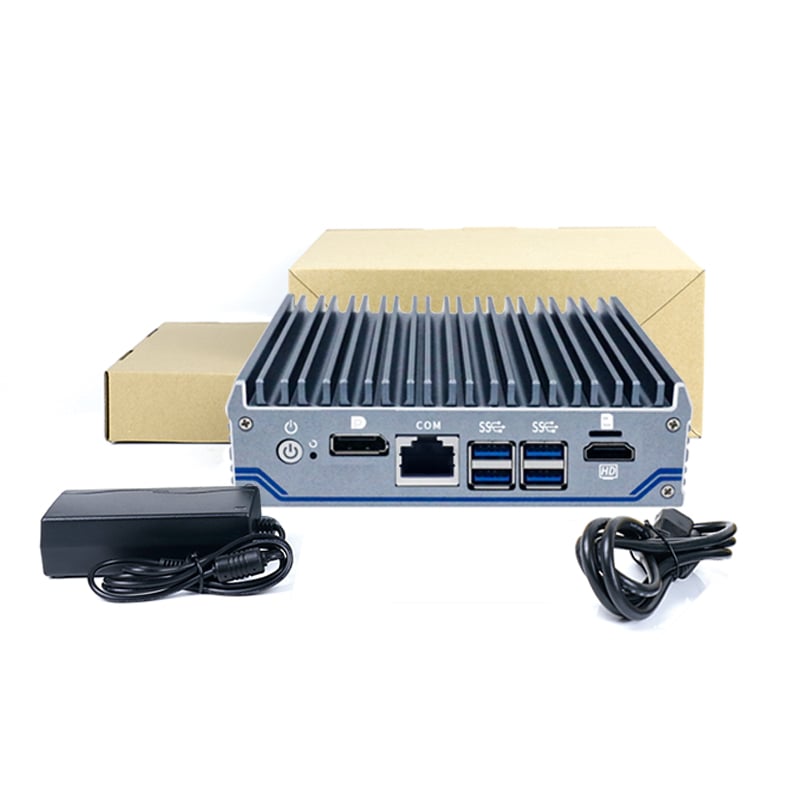

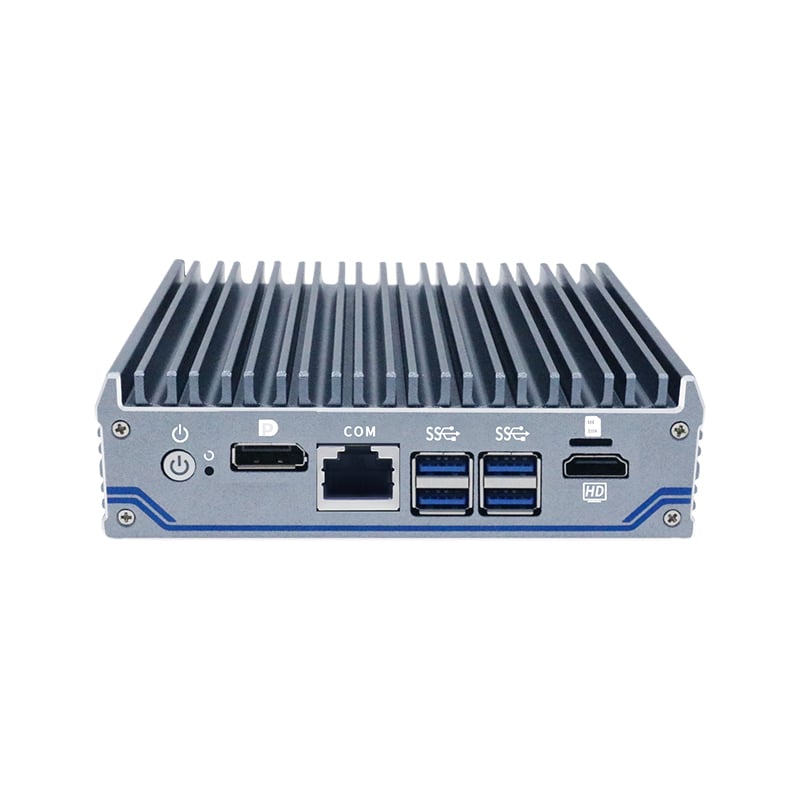

N1041 Firewall Mini PC

◆ Intel Celeron J4125 Firewall Mini PC;

◆ Integrated Intel HD Graphics 600;

◆ Support 4 x Intel gigabit ethernet;

◆ Support 2 x M.2 Slot, 1 x Mini PCIE Slot；

◆ 1*HDMI, 1 x DP, 1 x RJ45 COM, 4 x USB3.0;

◆ Fixing methods: Desktop, Din Rail, VESA wall-mounted and etc.

The N1041 Firewall Mini PC with 4 Intel NIC Gigabit Ports, Network Gateway Intel Gemini Lake Refresh j4125 Quad Core processor 4 cores 4 threads，4MB Cache，2.0GHz，pulse frequency 2.7GHz,prevents hackers content from entering your environment.keep your privates data’ safe.

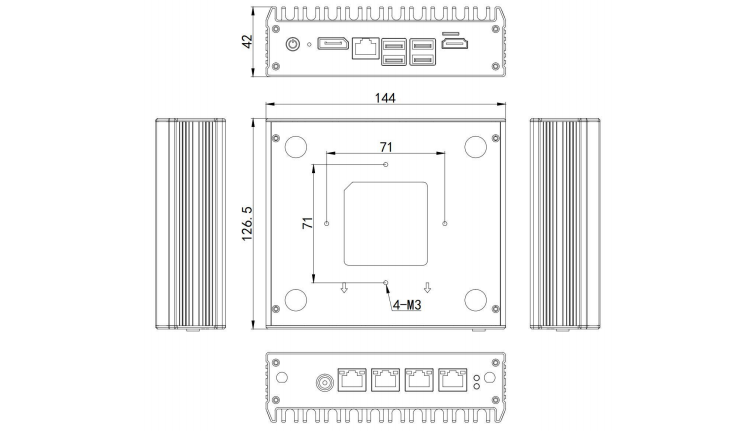

N1041 Drawing

Specification

Model	Nano N1041
Color	Titanium gray (Color can be customized)
Material	High-quality all aluminum，surface anodic oxidation
Processor	Onboard Intel Celeron J4125（Quad core quad threading，4MB Cache，2.0GHz，pulse frequency 2.7GHz）
CPU	Gemini Lake Refresh
Architecture	Gemini Lake Refresh
RAM	Support 1*DDR4 2400MHz SODIMM Memory Slot，Max. Support 8GB
BIOS	AMI UEFI BIOS
Display Chip	Integrated Intel HD Graphics 600
Display Port	1HDMI，1DP（Support synchronous and asynchronous dual display，Max Resolution support 4096x2160 @ 60Hz）
Front I/O	1Power Switch，1DP，1HDMI，4USB3.0，1*SIM Slot
Front I/O	1RJ45 COM（Support console），1Reset
Rear I/O	1DC，41000M LAN
Expansion Slot	Support 1*M.2 2280 M-key Slot（Support SATA Protocol）
	Support1*M.2 2230 E-key Slot（Only support USB BT）
	Support1*Mini PCIE Slot（4G Optional，External SIM slot：only support USB Wifi/BT）
Network	4*Intel i210-AT/i211 -AT 10/100/1000M Ethernet LAN
Storage	1M.2 2280SSlot，12.5’’ HDD
Input Voltage	Support DC 12V Input
Other Function	Auto power on when there is electricity、Timing boot、Wake on LAN、PXE boot
Work Temp	0℃ - +50℃（Commercial HDD），-20℃ - +60℃（Industrial SSD），Surface air flow
Work Humidity	0% - 95% non-condensing
Certificates	CE、 CCC、 FCC Class A、 ROHS
Dimension	144 * 126.5 * 42 mm
Net Weight	0.7 kg
Application	Firewall, VPN, Network Server, Network Security, Router and etc.
