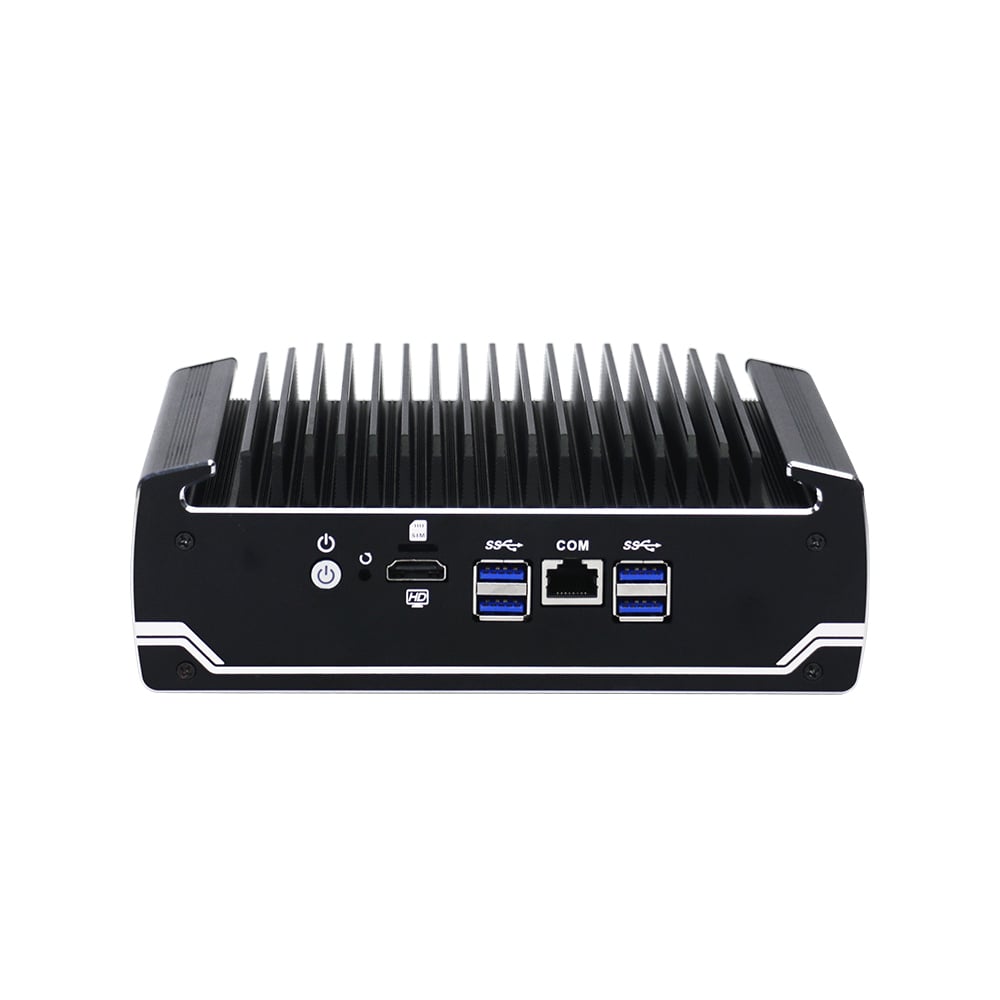

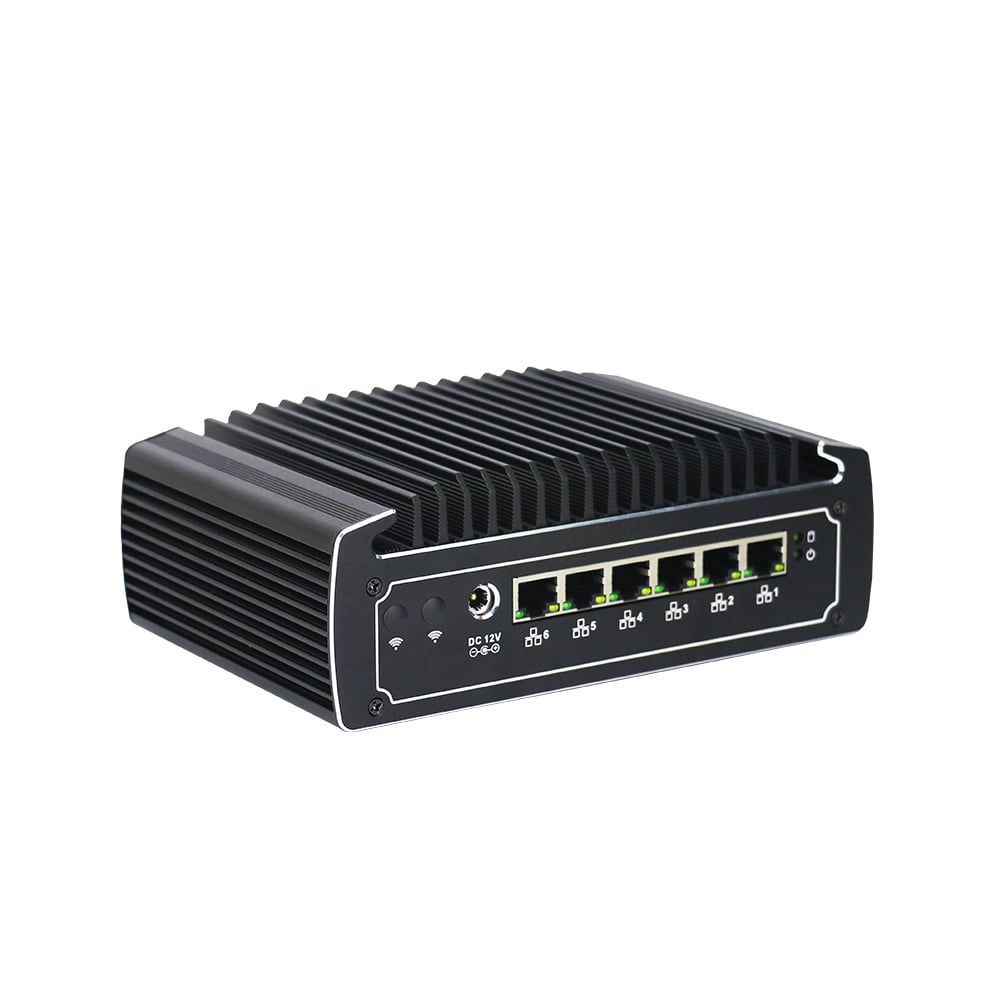

N18 Firewall Appliance Hardware

◆ Intel 8th Gen processor FirewallApplianceHardware

◆ Support 2xDDR4 RAM Slot，Max Support 32G；

◆ Support 1xMSATA，1*2.5”SATA;

◆ Support 6x Intel gigabit ethernet port;

◆ Support 1x RJ45 COM（Support Console）.

The N18 Firewall Appliance Hardware it Onboard Intel 8th Generation Core i5 i7 processor,Integrated Intel UHD Graphics 620 display chip,powered by 6 gigabit ethernet port,help you perform inspection of both inbound and outbound network traffic and enforce access controls.Support 2*DDR4 RAM Slot，Max Support 32G，Support 1* MSATA，1*2.5”SATA，Support 1* RJ45 COM（Support Console）Suitable for all network environments, including enterprise, home and public networks.

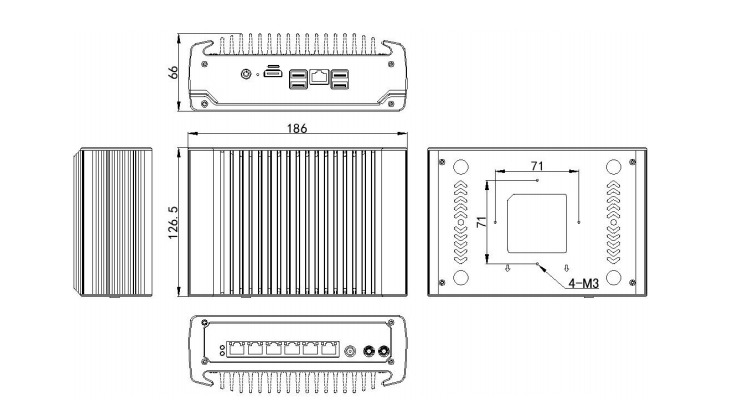

N18 Drawing

Specification

Model	IBOX-501 N18
Color	Black (Color can be customized)
Material	High-quality all aluminum，Surface anodic oxidation
Processor	Onboard Intel Celeron 3867U（Dual core, dual threads，1.8G，2MB Cache）;
	Ondoard Intel Core i5 8250U（quad core,8 threads,1.6G，Max.Turbo 3.4G,6MB Cache）;
	Onboard Intel Core i7 8550U（quad core,8 threads, 1.8G，Max.Turbo 4.0G,8MB Cache）.
RAM	Support 2* DDR4 2133/2400 MHz SODIMM RAM slot，Max. 32 GB
Display Chip	Integrated Intel UHD Graphics 620
Display Port	1* HDMI（No sound output）
Front I/O	4USB3.0,1Power Switch，1RJ45 COM（Support Console）,1 HDMI
Rear I/O	6RJ45 1000M Lan, 1DC
Expansion	Support 1* half height MINI PCIE slot（WIFI/BT Optional）
Expansion	Support 1* Full height MINI PCIE slo（t Suooport MSATA/4G，1* Nano-SIM slot on the plate）
Network	6*Intel i211-AT / i210-AT 10/100/1000M LAN
Storage	1MSATA slot,12.5” HDD
Input Voltage	Support DC 12V Input
Other Function	Auto power on when there is electricity、Timing boot、Wake on LAN、PXE boot、Watchdog（0～255 level）
Work Temp	0℃ ～ +50℃（Commercial HDD），-20℃ ～ +50℃（（Industrial SSD），Surface air flow
Work Humidity	0% ～ 95% non-condensing
Certificates	CE、 CCC、 FCC Class A、 ROHS

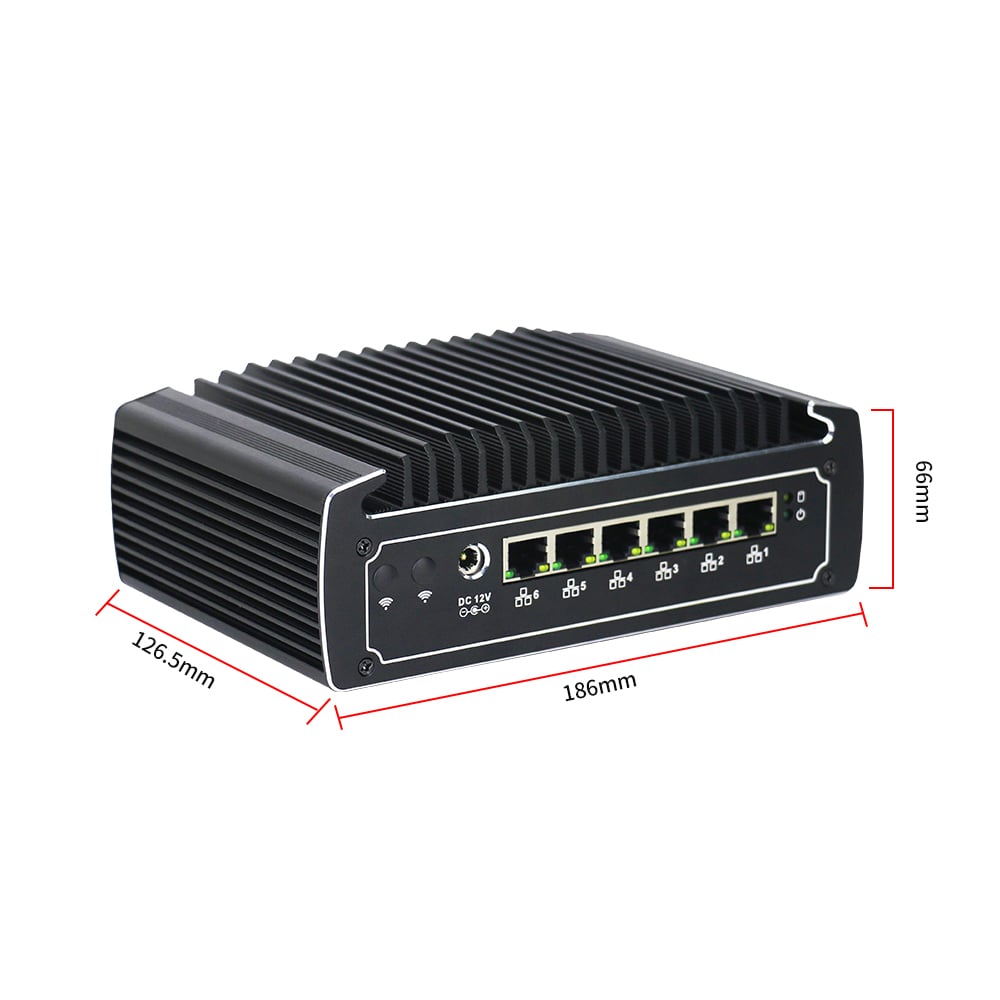

Dimension	186 * 126.5 * 66 mm
Net Weight	1.3 kg
Application	Firewall，VPN，Network server，Network security，Router etc.
