N24 Micro Firewall Appliance

◆ Intel Celeron J3160 Micro Firewall Appliance;

◆ 1xDDR3L1600MHz SODIMM 8GB;

◆ Support 2xMINI PCI-E;

◆ 2xHD-M-I port dual screen display;

◆ Support 4x gigabit ethernet port.

The N24 micro firewall appliance is a compact,fanless, quiet 4 lan mini pc devices, powered by intel celeron j3160 processor,4 core,1.6 GHz,Turbo boost 2.24 GH,Compatibility for linux,pfsense, win7,win8 and win 10 operation system,and with multi-functions like AES-NI, Watchdog, Auto power on, PXE boot, Wake-on-LAN etc. bring you a secured and encrypted network environment.

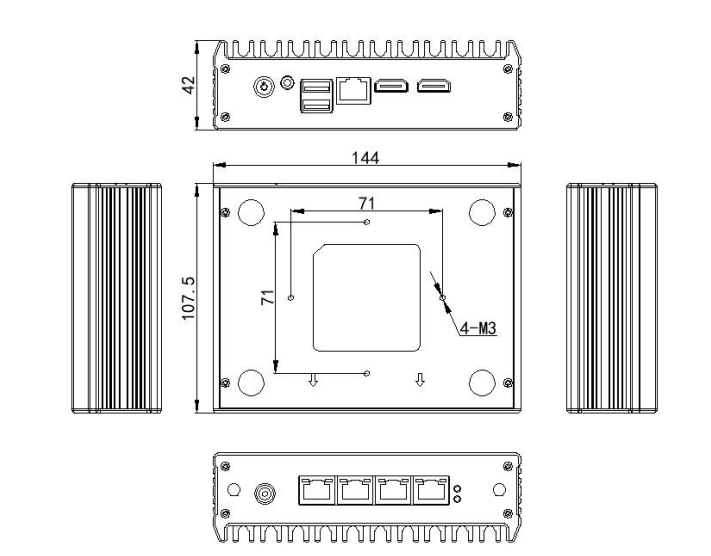

Nano-N24 Drawing

Specification

Model	Nano-N24
Color	Black（any color can be customized）
Material	Pure Aluminum
Processor	Intel Celeron J3160（4 core,1.6 GHz,Turbo boost 2.24 GHz
Chipset	Intel integrated chipset
Memory	1*DDR3L1600MHz SODIMM 8GB
Video Card	Intel HD graphic 320MHZ
Display	2*HDMI（support synchronous and asynchronous display）
Front I/O	1* Power Switch,1* Audio,2USB3.0,1 RJ-45 COM（Support Console）
Front I/O	2* HDMI（no sound）
Rear I/O	4* RJ45 Lan,1* DC
Expansion Slot	Support 1*MINI PCIE（WiFi/BT is optional）
Expansion Slot	Support 1*MINI PCIE（Support MSATA）
Network	4* Intel i211AT 10/100/1000Mb Lans
Storage	1* MSATA Slot,1*2.5’’ SSD/HDD
Power Supply	DC 12V
Work Temp	-10℃ ～ +50℃
Work Humidity	5% ～ 95% Non-Condensing
Dimension	144* 107.5 * 42mm
Weight	1kg
Applications	Firewall, VPN, Network Server, Network Security, VPN Router etc.
