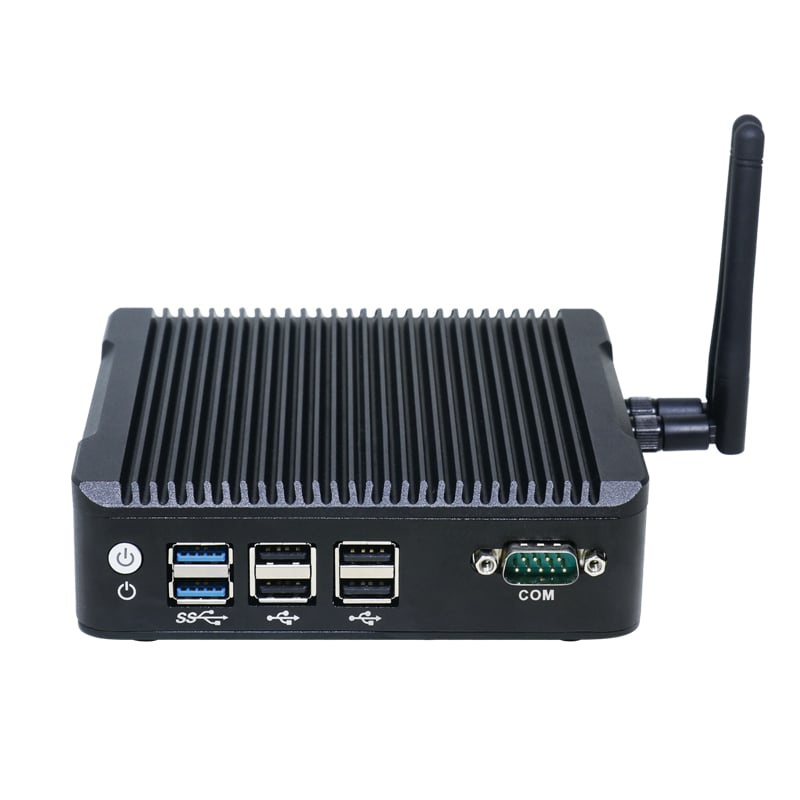

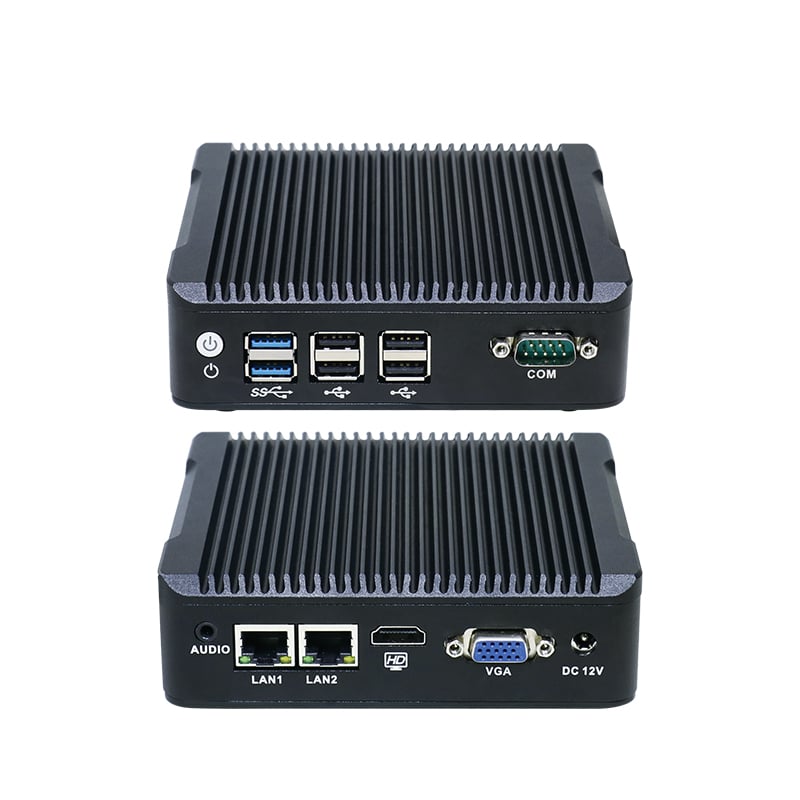

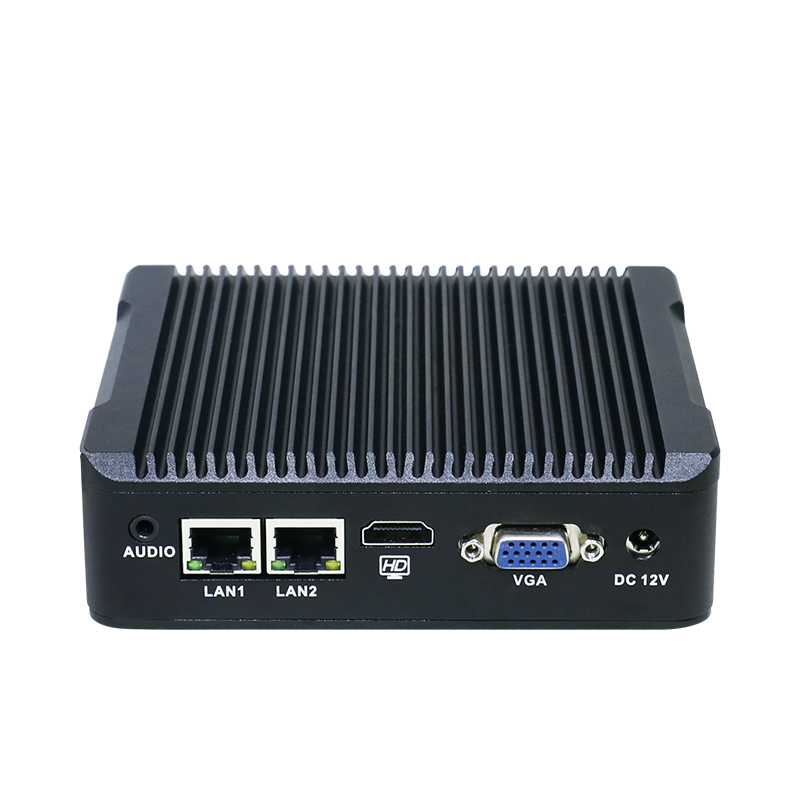

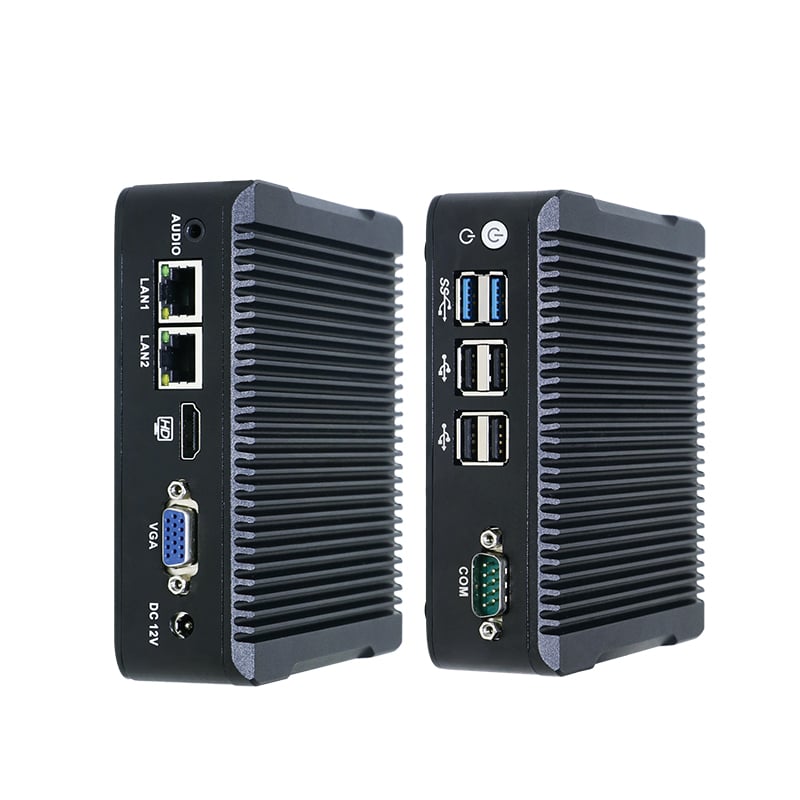

N3 J1900 Mini PC

◆ Fanless System J1900 Quad Core Mini PC;

◆ Max 1x DDR3 1333/1600MHz 8G Ram;

◆ 1x MINI PCIE Slot（WIFI/BT Optional) ;

◆ 1x MINI PCIE Slot（Support MSATA) ;

◆ 2x RTL8111E 1000M LAN;

◆ 1x VGA, 1x H-D-M-I support dual screen display;

The N3 is a cost-effective J1900 mini PC, compact, small form factor PC systems and devicesVery small only 134 x 126 x 38.5 mm, Intel Celeron J1900 quad-core processor Without cooling fan, Fanless System. Support for VGA and H-D-M-I dual Display,Designed for digital signage,KIOSK.

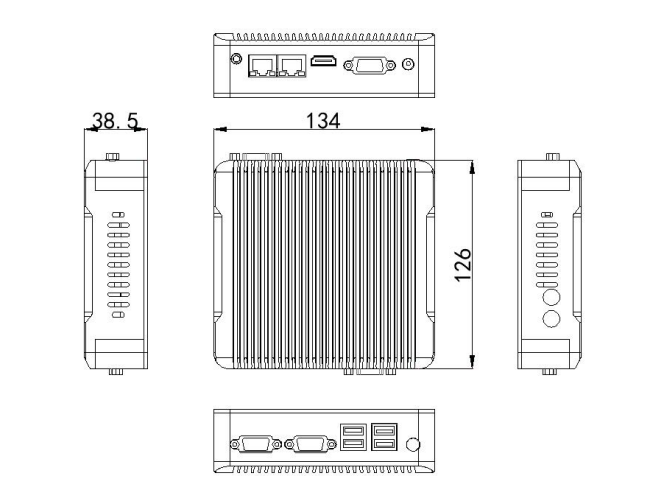

Nano N3 Drawing

Specification

Model	N3
Color	Black (Color can be customized)
Material	High-quality all aluminum，surface anodic oxidation
Processor	Intel Celeron J1900（Quad core quad threading，2MB Second Level Cache 1.99GHz）
Chipset	J1900（Single Chip）
RAM	Support 1*DDR3L 1333/1600MHz SODIMM RAM slot，Max. Support 8GB
BIOS	AMI UEFI BIOS
Display Chip	Integrated Intel HD Graphics
Display Port	1VGA，1HDMI（Support synchronous and asynchronous dual display）
Front I/O	1Power Switch，1USB3.0，3USB2.0，2RS232 COM
Rear I/O	1Audio，2RJ45 LAN，1VGA，1HDMI，1*DC Input
Expansion Slot	Support 1*MINI PCIE Slot（WIFI/Bluetooth Optional）
Expansion Slot	Support 1*MINI PCIE Slot（Support MSATA）
Network	2*10/100/1000M RTL8111E 1000M LAN
Storage	1MSATA，12.5”HDD
Input Voltage	Support DC 12V Input
Other Function	Auto power on when there is electricity、 Timing boot、Wake on LAN、PXE boot、Watchdog（0～255 level）(Standard version doesn’t set these function)
Work Temp	0℃ ～ +50℃（Commercial HDD），-20℃ ～ +50℃（Industrial SSD），Surface air flow
Work Humidity	5% ～ 95% non-condensing
Certificates	CE、 CCC、 FCC Class A、 ROHS
Dimension	134 * 126 * 38.5mm
Net Weight	0.7kg
Application	Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education etc.
