◆ 8th&10th Gen Intel Core i3/i5/i7 processor Mini Computer;
◆ TPM2.0 security encryption,support Windows 11 system;
◆ 1 DDR4 memory slot, Max 32 GB;
◆ 1 M.2 2280 slot and 1 2.5-inch hard drive bay;
◆ 2 COM ports (2 optional RS232/485 modes);
◆ Support DC 12V input.
| Model | Nano N3022 |
| Color | Black (color can be customized) |
| Material | High-quality all-aluminum alloy, hard anodized surface |
| Processor | Intel Core i3 10110U (Dual core four threads, 2.1 GHz,Max. Turbo 4.1 GHz) |
| Intel Core i5 8260U (Quad core eight threads, 1.6 GHz,Max. Turbo 3.9 GHz) | |
| Intel Core i5 10310U (Quad core eight threads, 1.6 GHz, Max. Turbo 4.2 GHz) | |
| Intel Core i7 10810U (Six core twelve threads,1.1 GHz, Max. Turbo 4.9 GHz) | |
| Memory | 1*DDR4 2400/2666 SODIMM RAM SLOT，Max 32 GB |
| BIOS | AMI EFI BIOS |
| Display Chip | Intel(R) UHD Graphics 620，Intel(R) UHD Graphics |
| Display Port | 1*DP，1*HDMI，(DP Port resolution 4096x2160 @ 60Hz) |

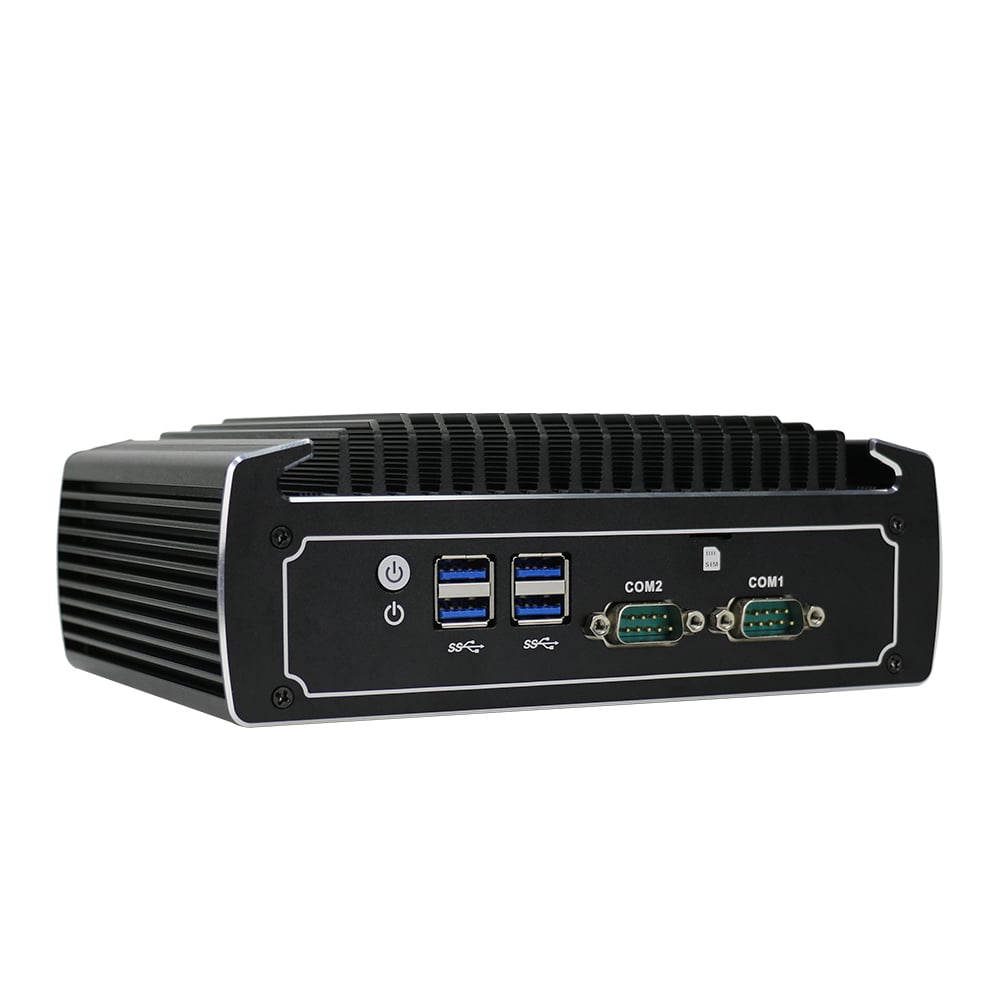

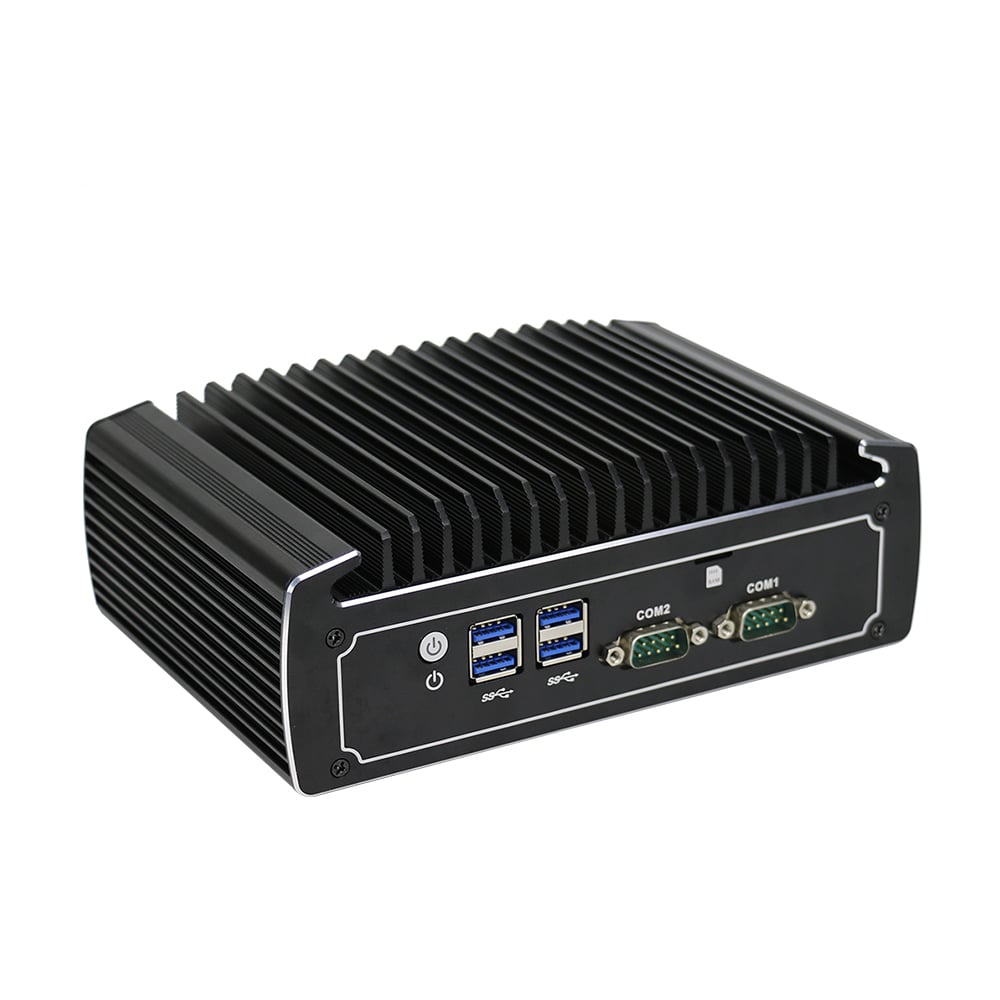

| Front I/O | 2*COM（optional RS232/485），4*USB3.1，1*Power button，1*SIM card |

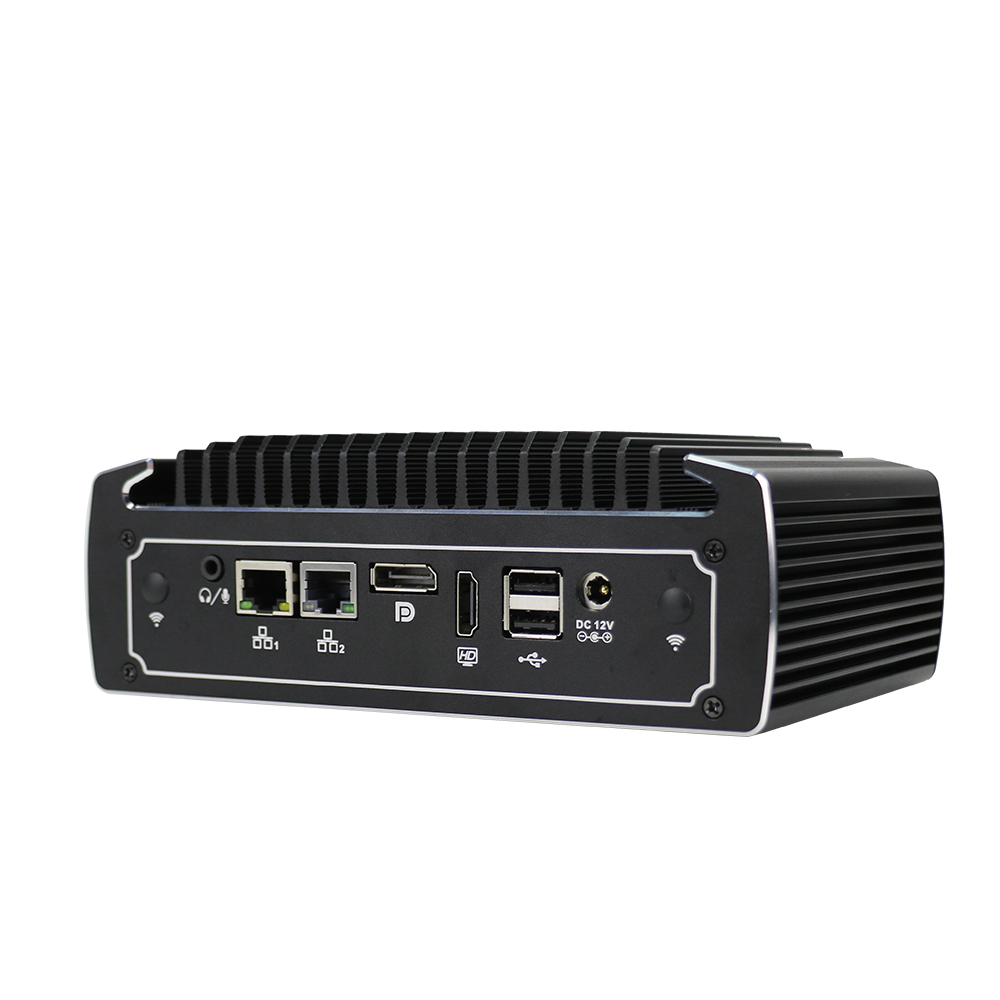

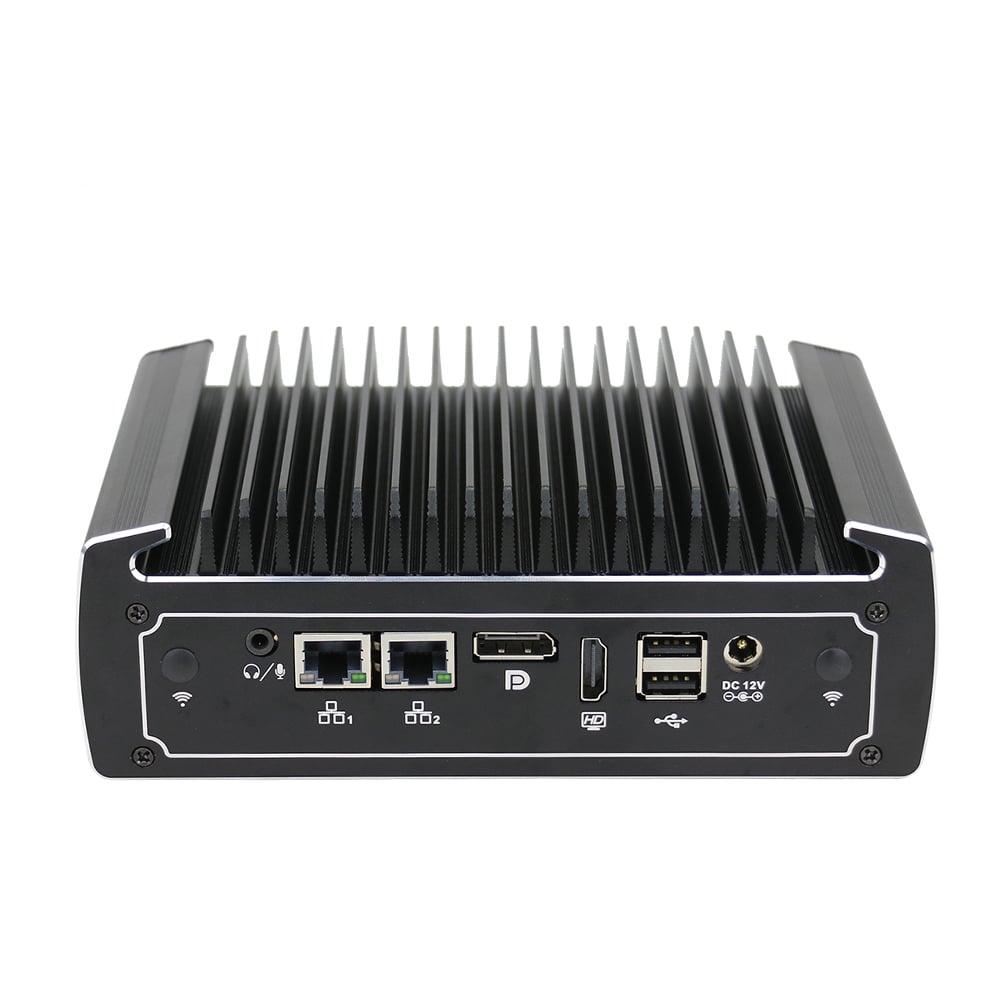

| Rear I/O | 1*DC，2*USB2.0，1*HDMI，1*DP |
| 1*Audio ( Support Mic and Speaker at the same time，2*Intel 1000M LAN | |
| Expansion slot | Support 1 M.2 2280 M-Key slot (supports SATA protocol and NVME protocol) |
| Support 1 MINI PCIE slot (choose one from WIFI/3G/4G), front SIM card holder | |
| Expandable port (standard shipment does not include this interface): 2 USB2.0, 3-way GPIO | |
| Network | 2 Intel i210-AT or 2 Intel i225-V 2.5G Ethernet. |
| Storage | Support 1 M.2 2280 slot, 1 2.5-inch hard drive, supports RAID 0/1 |
| Power Supply | Support DC 12V input |
| Other Function | Auto power on when there is electricity, Timing boot, Wake on LAN,PXE boot, Watchdog, TPM2.0 security encryption（0～255 level） |
| Work Temp | 0℃ ～ +40℃（Commercial HDD），-20℃ ～ +50℃（Industrial SSD），Surface air flow |
| Work Humidity | 5% ～ 95% non-condensing |
| Certification | CE、 CCC、 FCC Class A、 RoHS |

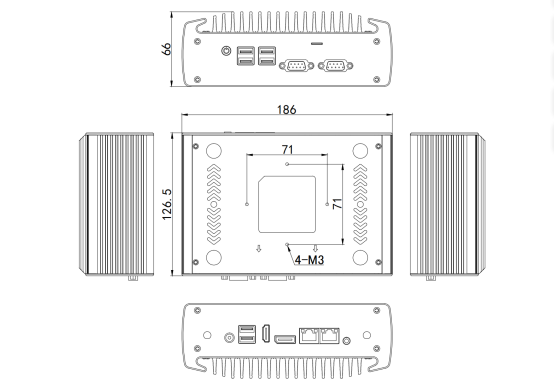

| Dimension | 186 * 126.5 * 66 mm |
| Net Weight | 1.3 kg |
| Application | Business Office, HD Film TV Playback, Electronic Education, Industrial Automation, Etc. |
