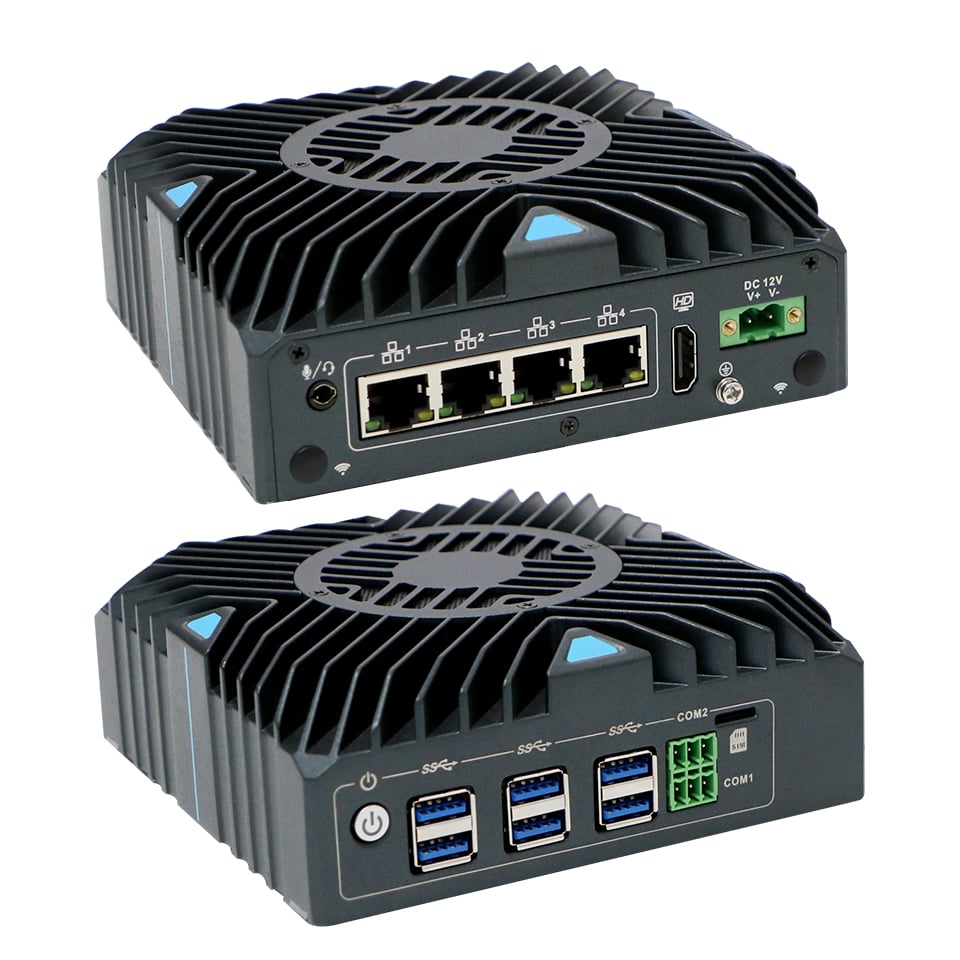

N312F Pfsense Firewall Router

◆ Intel 10th Gen core i3,8th Gen core i5 pfsense firewall router;

◆ 4xIntel i210-AT/i211-AT 1000M LAN;

◆ 1xDDR4 memory slot，Max. 32 GB;

◆ Support 1xM.2 2280 slot, 1x2.5 inch HDD;

◆ 2x3 pin Phoenix port,Can be option 2*RS232/485;

◆ Fan auxiliary heat dissipation all aluminum design.

The N312F is a Fan auxiliary heat dissipation design 4 ethernet ports pfsense firewall router,with 8th gen intel core i5 and 10th Gen Intel Core i3 Processor, Extensive Connectivity: 4 intel gigabit lan,1xHD-M-I 4096x2304@24Hz, 6*USB3.1，1xSIM card slot, 2x 3 pin Phoenix port Can be option 2*RS232/485,1x Audio& Mic ，1XDC-in 12V input.That ideal for network security,e-education, machine vision, industrial automation, Business office,etc

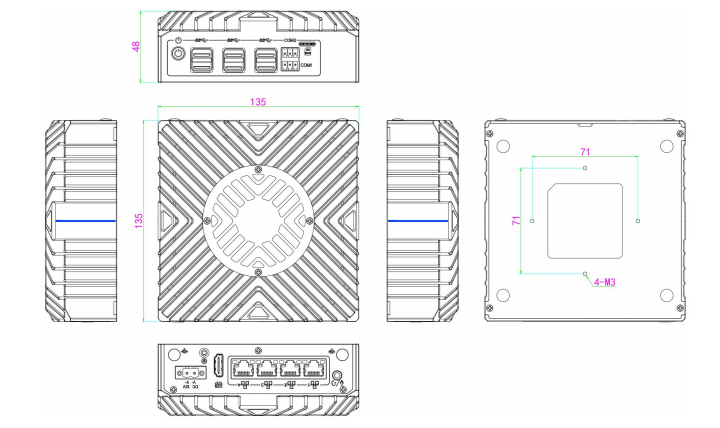

Nano-N312F Drawing

Specification

Model	Nano-N312F
Color	Metallic gray (color can be customized
Material	High quality all-aluminium alloy
Processor	Onboard Intel Core i3 10110U（Dual core 4 threads, 2.1GHz,Max.Turbo 4.1GHz）
Processor	Onboard Intel Core i5 8260U（Quad core 8 threads，1.6 GHz，Max.Turbo 3.9 GHz）
Memory	Support 1*DDR4 2400/2666 SODIMM memory slot，Max 32 GB
BIOS	AMI EFI BIOS
Display chip	Intel(R) UHD Graphics 620，Intel(R) UHD Graphics
Display port	1*HDMI（4096x2304@24Hz）
Front I/O	1power button，6USB3.1，1*SIM card slot
Front I/O	23 pin Phoenix port（Can be option 2RS232/485）
Back I/O	1audio/Mic interface，4RJ45，1HDMI，1DC in 12V
Expansion slot	Support 1*M.2 2280 M-Key slot（ SATA or NVME）
Expansion slot	Support 1*MINI PCIE slot（WIFI/3G/4G），preposition SIM card slot
Network port	4*Intel i210-AT/i211-AT
Memory slot	Support 1M.2 2280 slot，12.5 inch SATA HDD，support RAID 0/1
Input voltage	Support DC 12V input
Another functions	Auto power on when there is electricity,Timing boot,Wake on LAN,PXE boot,Watchdog （0～255 level）, TPM2.0
Work temperature	0℃ ～ +40℃（business HDD），-20℃ ～ +50℃（industrial SSD），Surface air flow
Work humidity	5% ～ 95% Non-condensing state
Certification	CE、 CCC、 FCC Class A、 RoHS
Dimension	135 * 134 * 48 mm
Weight	0.83 kg
Application field	HD film and television broadcasting, e-education, machine vision, industrial automation, Business office,etc
