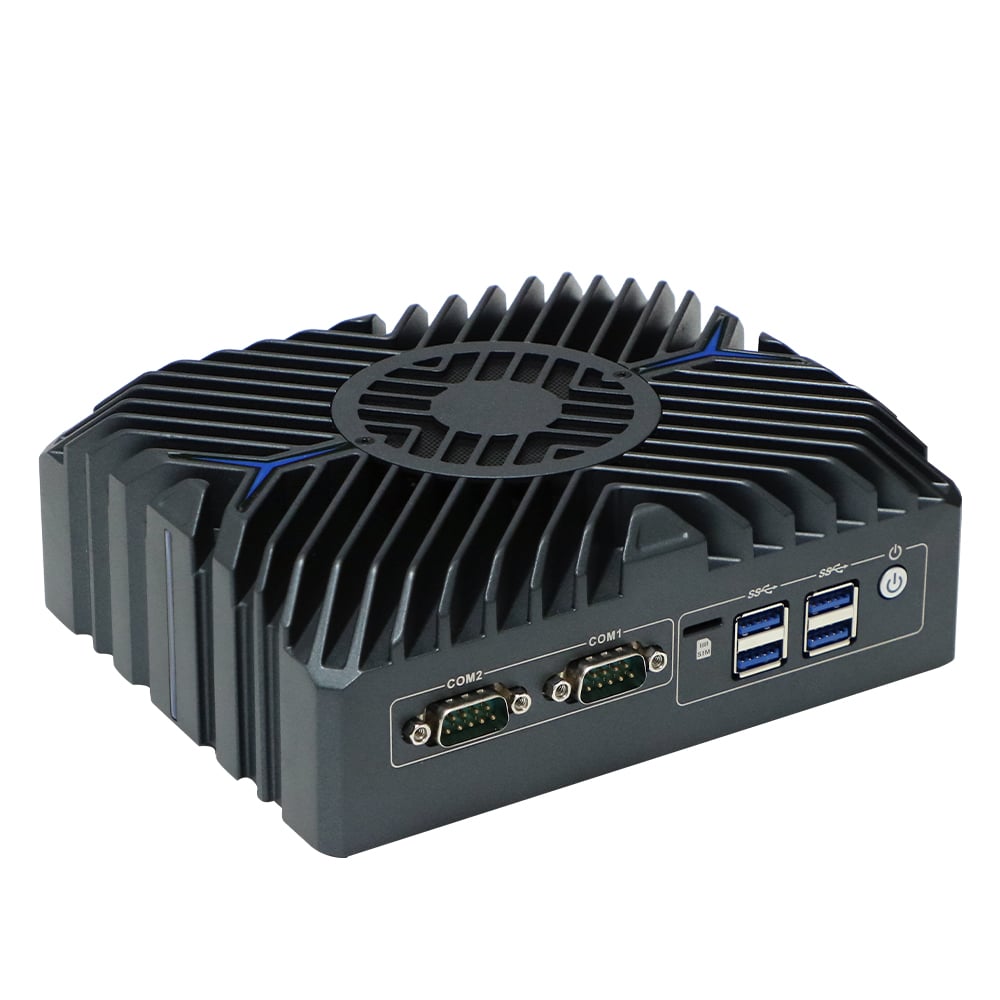

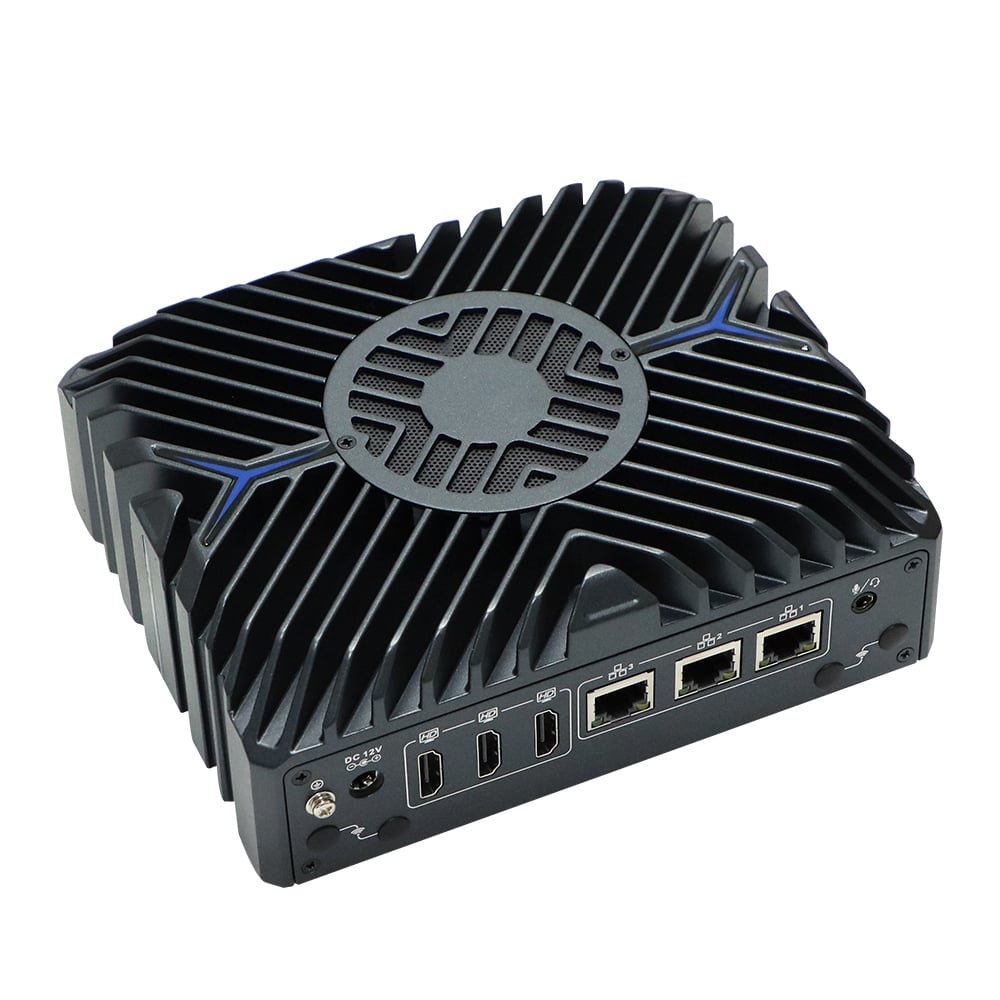

◆ 12th Gen Intel Core processo Rugged Mini PC;
◆ 3 x HDMI 4K display port, Max.Resolution 4096x2160;
◆ 1 x M.2 2280 M-Key slot, NVME;
◆ 1 x M.2 2230 E-key slot, WIFI、BT;
◆ 1 x M.2 3052 B-key slot,USB3.0, 4G/5G , External SIM card slot;
◆ 2 x COM support 2*RS232/RS485;
◆ 3 x Intel i226-V 2.5G Lan.
| Name | Nano-N3322 |
| Chassis color | Metal Grey( Colors can be customized) |
| Material | High quality all aluminium |
| Processor | Onboard Intel Core i3 1215U( six core eight threads, Turbo. 4.4 GHz) |
| Onboard Intel Core i5 1235U( ten core twelve threads, Turbo. 4.4 GHz) | |
| Onboard Intel Core i7 1255U( ten core twelve threads, Turbo. 4.7 GHz) | |
| Memory | Support 1*DDR5 4800 SODIMM memory slot, Max. 32 GB |
| BIOS | AMI EFI BIOS |
| Display chip | Intel(R) UHD Graphics |
| Display port | 3*HDMI support 4K , Support Synchronous or asynchronous display, Max.4096x2160 |

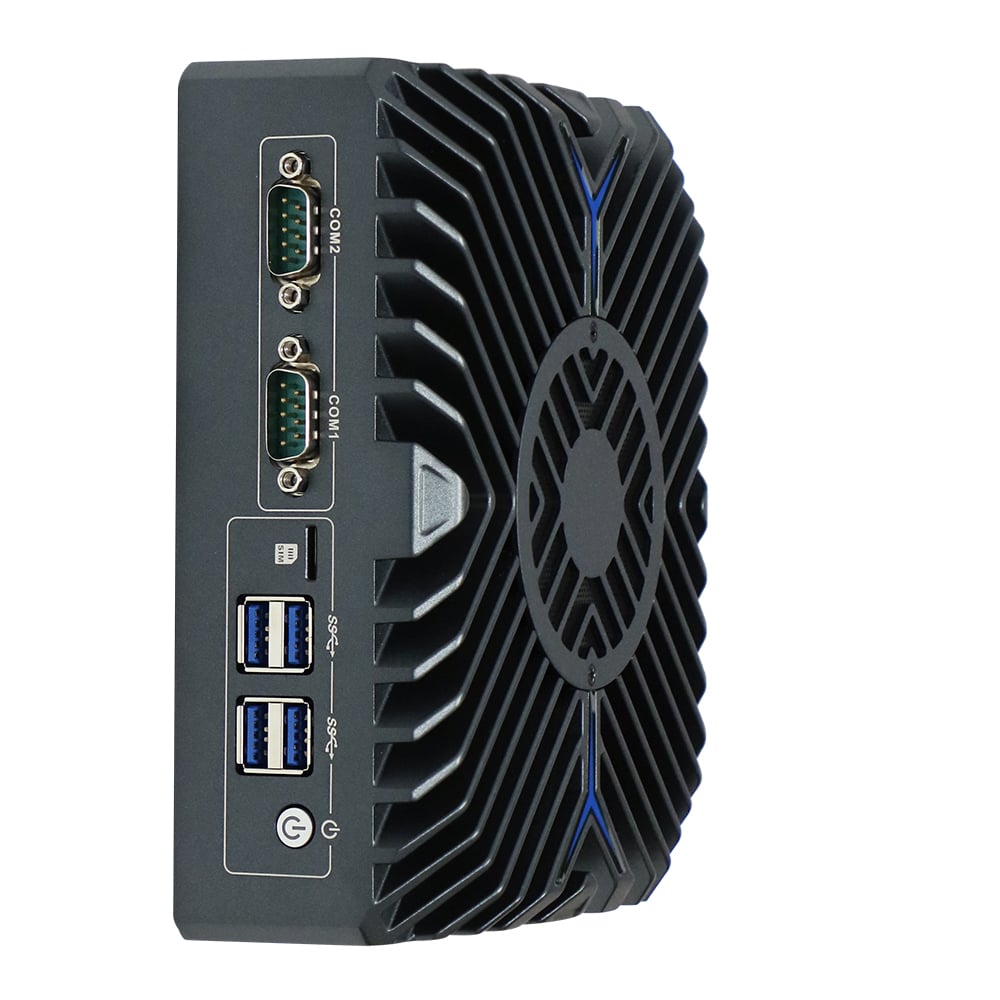

| Front I/O | 2*COM support RS232/RS485 ,1*SIM slot,4*USB3.1, 1*Power button |

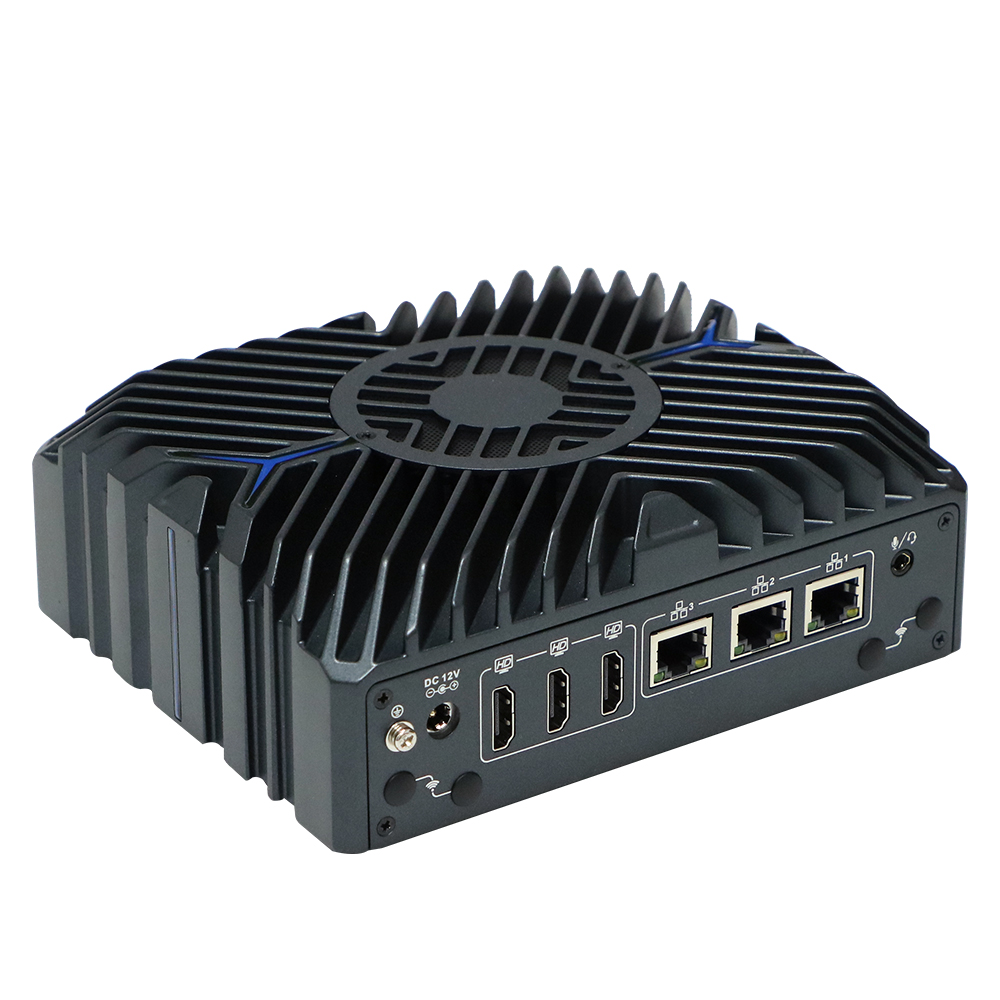

| Rear I/O | 1*DC port, 3*HDMI, 3*Intel 2.5G Lan, 1*Audio |
| Expansion slot | 1*M.2 2280 M-Key slot( NVME) |
| 1*M.2 3052 B-key slot( USB3.0 signal, support 4G/5G) , External SIM card slot | |
| 1*2230 E-key slot( support WIFI、Bluetooth) | |
| Network | 3*Intel i226-V 2.5G Lan |
| Storage | 1*M.2 2280 slot, 1*2.5 inch HDD |
| Input | DC 12V input |
| Other functions | Power-on, timed startup, network wake up, PXE startup, watchdog (level 0-255), TPM2.0 security encryption |
| Working temp. | 0℃ ~ +40℃( business HDD) , -20℃ ~ +50℃( industrial SSD) , Surface air flow |
| Working humidity | 5% ~ 95% Non-condensing |
| Certification | CE, CCC, FCC Class A, RoHS |

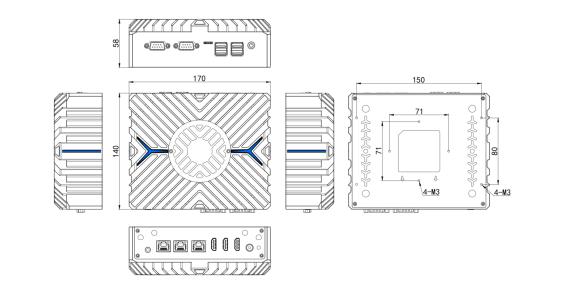

| Dimension | 170 * 140 * 58 mm |
| Weight | 1.1 kg |
| Application | Industrial Control, Industrial Automation, Robot, IoT gateway, Edge computing, Machine Vision, AGV/AMR, etc. |
